Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 154222703 Panel-control Appelez-nous -
2 154356903 Insert-control Pnl,black Appelez-nous -
3 154351102 Timer Appelez-nous -
8 154215101 Switch-selector, 4b Tap Touch Appelez-nous -
13 154239301 Knob-timer, Black Special Order $ 48.46

20 154283701 Vapor Weldment Assy Appelez-nous -
25 154303901 Gasket-vent Appelez-nous -
26 154229201 Seal-chamber Special Order $ 12.81

27 154226701 Actuator,wax Special Order $ 65.46

28 154226901 Valve-vent Appelez-nous -
29 154226401 Gasket-valve Special Order $ 51.14

*36200 154779601 Screw,mtg.   (Replaces: 5303318719) Special Order $ 1.42

*36201 154248601 Shield,switch Appelez-nous -
*36202 5300809055 Screw, Cr Truss S.s., 8 .438 Special Order $ 1.21

*36203 154283901 Screw,8-10 ,3/8 Phillips Special Order $ 7.56

*36204 154351301 Harness-wiring Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

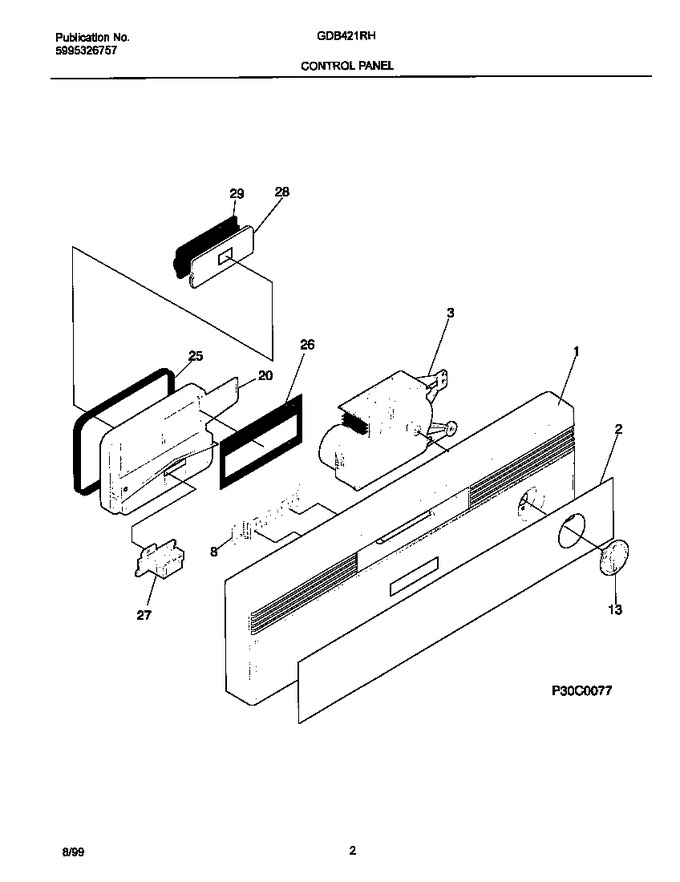

Diagram for GDB421RHR1
