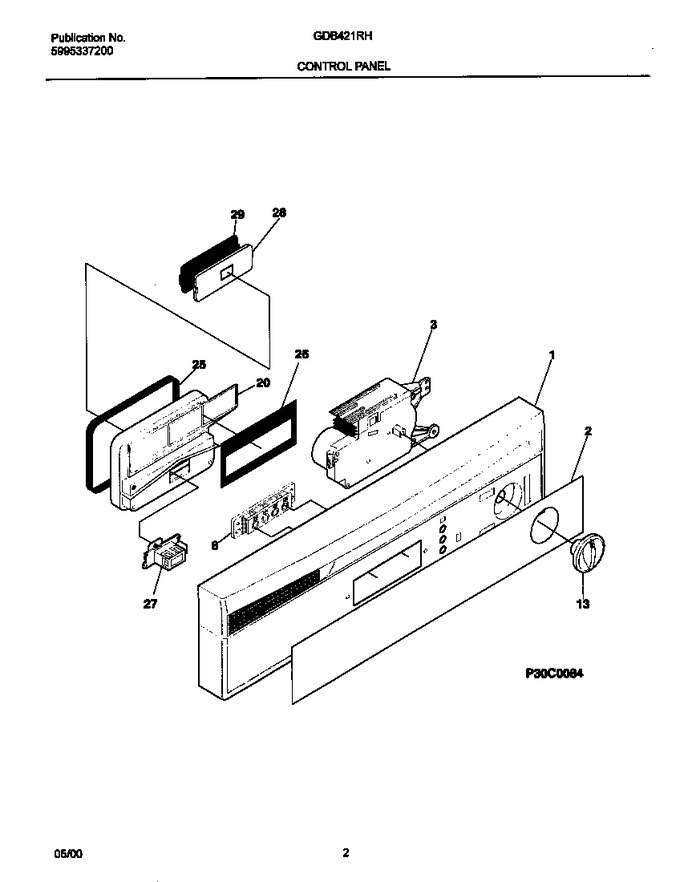

SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Door


04 - Tub


05 - Motor


06 - Frame


07 - Rack


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154368203		Panel-control,black		Appelez-nous	-
2	154356903		Insert-control Pnl,black		Appelez-nous	-
3	154351102		Timer		Appelez-nous	-
8	154215101		Switch-selector, 4b Tap Touch		Appelez-nous	-
13	154239301		Knob-timer, Black				$ 48.46
20	154283701		Vapor Weldment Assy		Appelez-nous	-
25	154303901		Gasket-vent		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226403		Gasket-valve		Appelez-nous	-
*08720	154248601		Shield,switch		Appelez-nous	-
*08721	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
*08722	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56
*08723	154370801		Harness-wiring		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
