SELECT A DIAGRAM

01 - Base (lse7800ael,aew)


02 - Base-brake (lse7800ael,aew)


03 - Blower & Lint Screen (lse7800ael,aew)


04 - Cabinet (lse7800ael,aew)


05 - Cabinet-dryer (lse7800ael,aew)

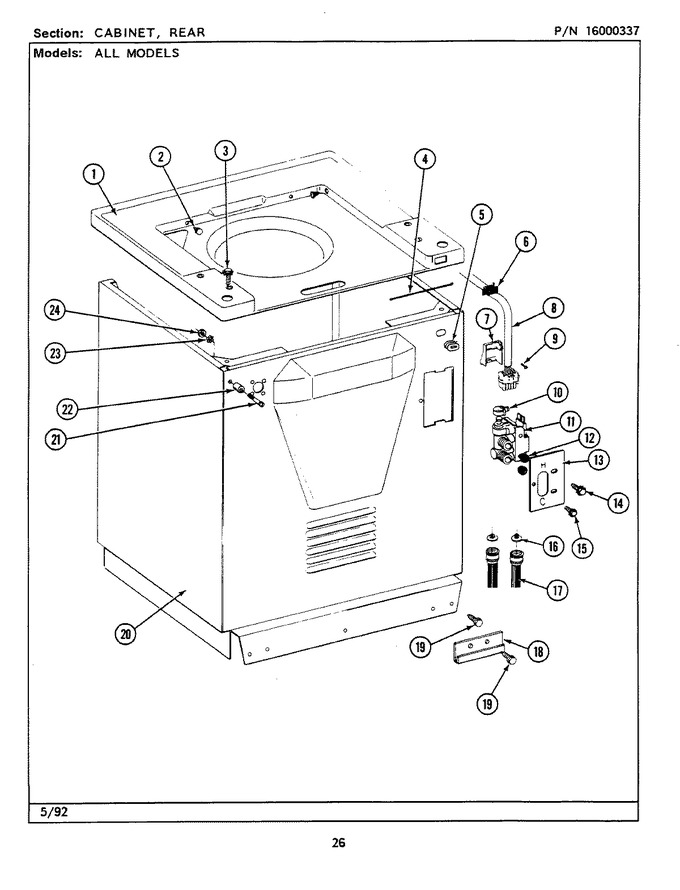

06 - Cabinet-rear (lse7800ael,aew)


07 - Door (lse7800ael,aew)


08 - Front (lse7800ael,aew)


09 - Front Panel & Cntrl Pnl (lse7800ael,aew)


10 - Heater (lse7800ael,aew)


11 - Lid Lock (lse7800ael,aew)


12 - Motor & Pump (lse7800ael,aew)


13 - Motor (lse7800ael,aew)


14 - Transmission (lse7800ael,aew)


15 - Tub Cover (lse7800ael,aew)


16 - Tub-inner & Outer (lse7800ael,aew)


17 - Tumbler (lse7800ael,aew)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	207579		Top Cover (white)	A5	Appelez-nous	-
2	215247		Bumper For Lid	A5	Appelez-nous	-
3	214354		Screw	A5	Appelez-nous	-
4	215274		Top Cover Restraint	A5	Appelez-nous	-
5	215950		Plug, Hole	A5	Appelez-nous	-
6	215948		Grommet	A5	Appelez-nous	-
7	Y216003		Stain Relief W/extension	A5	Appelez-nous	-
8	208213		Wire Harness	A5	Appelez-nous	-
8	207784		Wire Harness	A5	Appelez-nous	-
9	215953		Screw	A5	Appelez-nous	-
10	WP596669		Hose Clamp   (Replaces: 201575)	A5		Immediately	$ 7.56
11	205613		Water Valve	A5		Immediately	$ 103.57
12	WP96160		Screen, Valve   (Replaces: 214337)	A5			$ 10.54
13	215264		Bracket For Water Valve	A5	Appelez-nous	-
14	Y313561		Screw----na	A5			$ 5.27
15	WP90767		Screw   (Replaces: 212276)	A5		Immediately	$ 7.04
16	200961		Screen Washer, Inlet Hose	A5	Appelez-nous	-
17	WP76314		Inlet Hose Assy.   (Replaces: 200672)	A5			$ 38.79
18	215278		Glide For Washer	A5	Appelez-nous	-
19	WPW10346892		Screw   (Replaces: 213121)	A5		Immediately	$ 6.47
20	207207		Cabinet Wht	A5	Appelez-nous	-
21	WP67006908		Screw   (Replaces: 215277)	A5		Immediately	$ 7.16
22	215276		Bushing	A5	Appelez-nous	-
23	310557		Washer	A5	Appelez-nous	-
24	WP486255		Hex. Nut, No.8-32   (Replaces: Y052659)	A5			$ 5.54

    View Diagram in Separate Window       Print Part List
