SELECT A DIAGRAM

01 - Cover

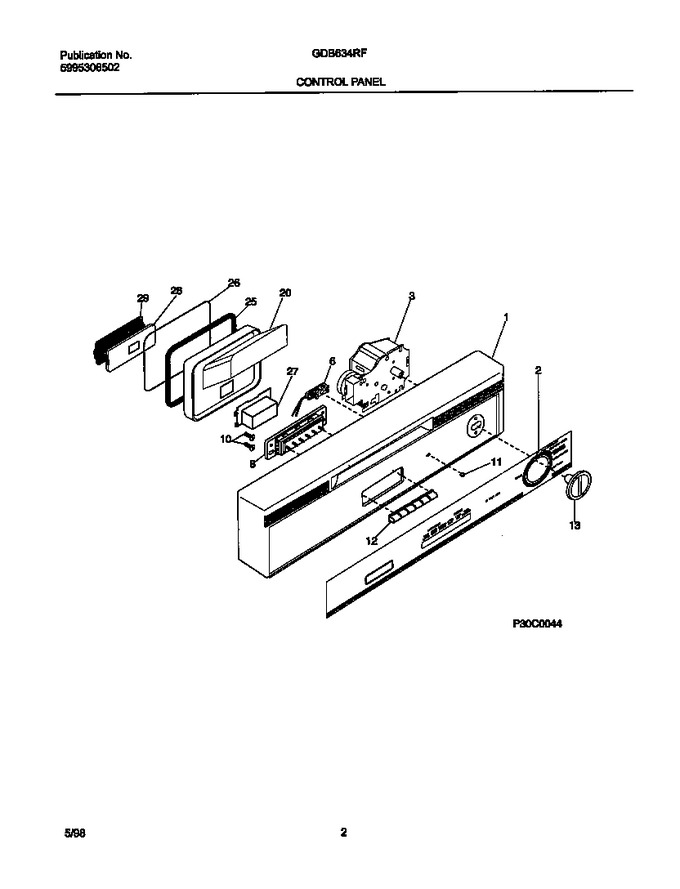

02 - Control Panel


03 - Door


04 - Tub


05 - Motor & Pump


06 - Frame


07 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154222603		Panel-control, Black		Appelez-nous	-
2	154287703		Insert-control Pnl, Black		Appelez-nous	-
3	154301101		Timer				$ 70.09
8	154215501		Switch-selector, 6 Button		Appelez-nous	-
10	154103702		Screw-switch Mtg, (2)				$ 13.46
11	5300809036		Lens-light				$ 20.90
12	154239401		Pushbutton, Black		Appelez-nous	-
13	154239301		Knob-timer, Black				$ 48.46
20	154283701		Vapor Weldment Assy		Appelez-nous	-
25	154303901		Gasket-vent		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226401		Gasket-valve				$ 51.14
*37560	154131203		Shield-timer		Appelez-nous	-
*37561	154242201		Shield-switch		Appelez-nous	-
*37562	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56
*37563	154296302		Harness-wiring		Appelez-nous	-
*37564	316095421		Nameplate, Gibson		Appelez-nous	-
*37566	154779601		Screw,(3) ,timer Mtg.   (Replaces: 5303318719)				$ 1.42

    View Diagram in Separate Window       Print Part List
