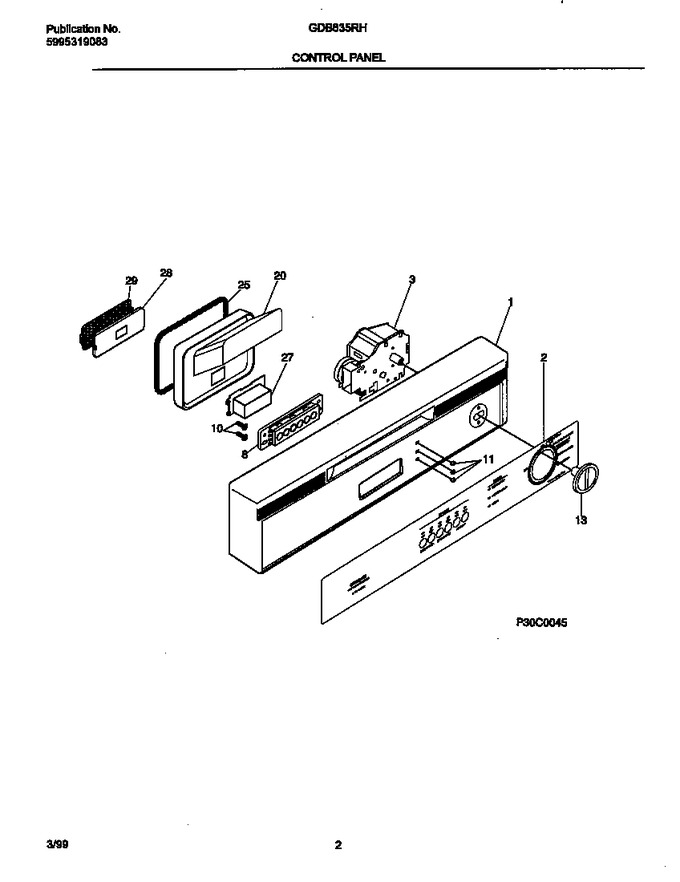

02 - Control Panel
03 - Door
04 - Tub
05 - Motor
06 - Frame
07 - Rack
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154222701 | Panel-control, White |
|
- | |||||
| 2 | 154357001 | Insert-control Pnl,white |
|
- | |||||
| 3 | 154295701 | Timer |
|
- | |||||
| 8 | 154214701 | Switch-selector, 6 Button |
|
$ 201.44 | |||||
| 10 | 5300809055 | Screw, Cr Truss S.s., 8 .438 |
|
$ 1.21 | |||||
| 11 | 154298301 | Lens-light |
|
- | |||||
| 13 | 154239302 | Knob-timer, White |
|
$ 57.54 | |||||
| 20 | 154283701 | Vapor Weldment Assy |
|
- | |||||
| 25 | 154303901 | Gasket-vent |
|
- | |||||
| 26 | 154229201 | Seal-chamber |
|
$ 12.81 | |||||
| 27 | 154226701 | Actuator,wax |
|
$ 65.46 | |||||
| 28 | 154226901 | Valve-vent |
|
- | |||||
| 29 | 154226401 | Gasket-valve |
|
$ 51.14 | |||||
| *64360 | 154095701 | Screw-timer, Thread Rolling, (2) |
|
$ 10.34 | |||||
| *64361 | 154131203 | Shield-timer |
|
- | |||||
| *64362 | 154248601 | Shield,switch |
|
- | |||||
| *64363 | 154283901 | Screw,8-10 ,3/8 Phillips |
|
$ 7.56 | |||||
| *64365 | 154296103 | Harness-wiring |
|
- |
