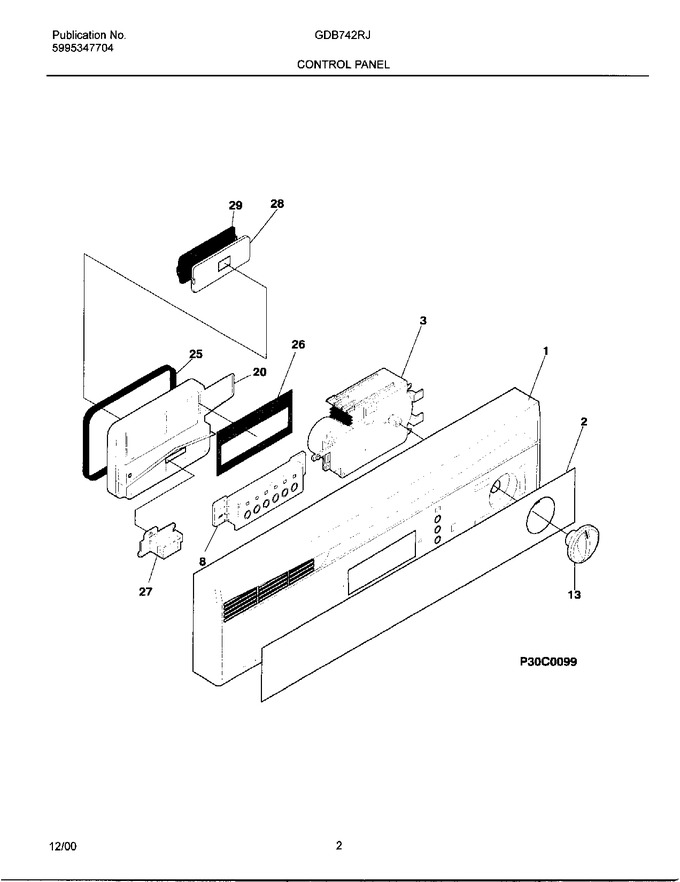

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154368201		Panel-control,white		Appelez-nous	-
1	154368203		Panel-control,black		Appelez-nous	-
2	154386401		Insert-control Pnl,white		Appelez-nous	-
2	154386403		Insert-control Pnl,black		Appelez-nous	-
13	154239301		Knob-timer, Black				$ 48.46
13	154239302		Knob-timer, White				$ 57.54
20	154283701		Vapor Weldment Assy		Appelez-nous	-
25	154303901		Gasket-vent		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226403		Gasket-valve		Appelez-nous	-
F3	154351102		Timer		Appelez-nous	-
F8	154373701		Switch-selector,6 Button		Appelez-nous	-
NI	154248601		Shield,switch		Appelez-nous	-
NI	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
NI	154373901		Wiring Harness,main		Appelez-nous	-
NI	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56

    View Diagram in Separate Window       Print Part List
