SELECT A DIAGRAM

02 - Backguard


03 - Burner Parts

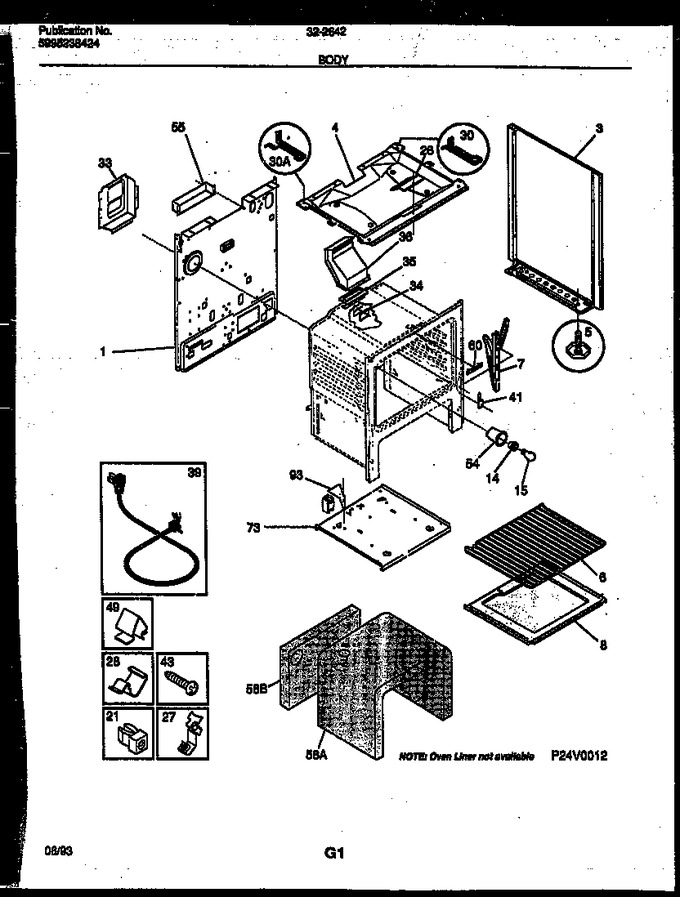

04 - Body Parts


05 - Cooktop And Broiler Drawer Parts


06 - Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3203082		Back-main		Appelez-nous	-
3	5303269518		Panel-bodyside, White, Rh		Appelez-nous	-
4	316011901		Burner Box		Appelez-nous	-
5	5303203397		Screw-leveling				$ 14.49
6	5303281625		Rack Oven		Appelez-nous	-
7	316007001		Hinge,oven Door ,(2)				$ 234.55
8	5303212540		Panel-oven Bottom		Appelez-nous	-
14	3014073		Socket-light/lamp, Oven		Appelez-nous	-
15	40A15		Light Bulb/lamp   (Replaces: 5303013071)			Immediately	$ 1.98
21	3014099		Spacer-bodyside, (8)				$ 3.62
26	08067757		Cover Plate		Appelez-nous	-
27	5303284616		Clip-thermo Bulb				$ 9.86
28	3011813		Clip-wire				$ 14.79
33	316055601		Shield-spark Module		Appelez-nous	-
34	3018607		Cover Plate				$ 10.50
35	08067965		Gasket-flue		Appelez-nous	-
36	3131909		Flue		Appelez-nous	-
39	5304534377		Cord-electric Power   (Replaces: 3202006)				$ 26.85
41	3131570		Cover Hinge Cutout				$ 7.35
43	316282700		Screw-oven Bottom, 8-18 X 1-7/16   (Replaces: 3131732)				$ 9.93
49	3205821		Clip-spring Mtg   (Replaces: 3051124)			Immediately	$ 35.44
54	3051511		Housing-oven Light				$ 60.22
55	3131191		Cover, Flue		Appelez-nous	-
60	5303015372		Cover-oven Front		Appelez-nous	-
73	5303281627		Base-broiler		Appelez-nous	-
93	316055501		Shield, Igntr Connector		Appelez-nous	-
*86378	3131192		Cover-rear Wall		Appelez-nous	-
3A	5303269519		Panel-bodyside, White, Lh (non-illustrated)		Appelez-nous	-
58A	3017142		Insulation, Oven Wrapper				$ 193.50
58B	3203541		Insulation, Oven Back		Appelez-nous	-
5A	5303288460		Nut, T-type, Leveling Screw (non-illustrated)				$ 27.14
5B	3934056		Anti-tip Kit (non-illustrated)		Appelez-nous	-
8A	3014226		Support-oven Bottom, (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
