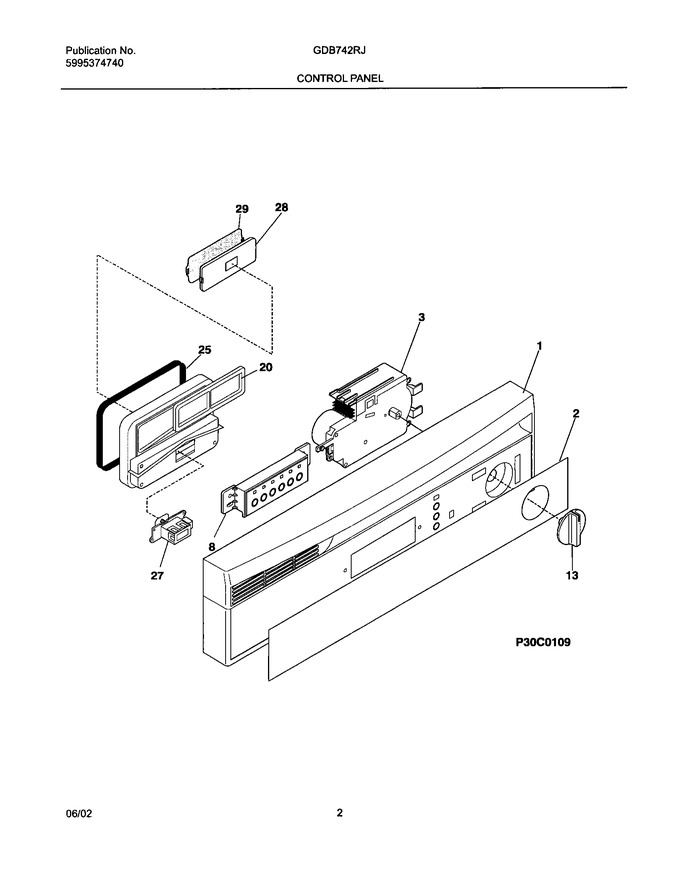

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154368203		Panel-control,black		Appelez-nous	-
2	154386403		Insert,control Panel ,black		Appelez-nous	-
13	154239301		Knob-timer, Black				$ 48.46
20	154345101		Vapor Chamber Assy,w/ Vent Gasket				$ 101.50
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226403		Gasket-valve		Appelez-nous	-
F3	154409102		Timer				$ 385.35
F8	154373701		Switch-selector,6 Button		Appelez-nous	-
NI	154283901		Screw,no.8-10 ,3/8 Phillips				$ 7.56
NI	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
NI	154394201		Wiring Harness,main		Appelez-nous	-
NI	154399012		Label,energy Guide		Appelez-nous	-
NI	154248601		Shield,switch		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
