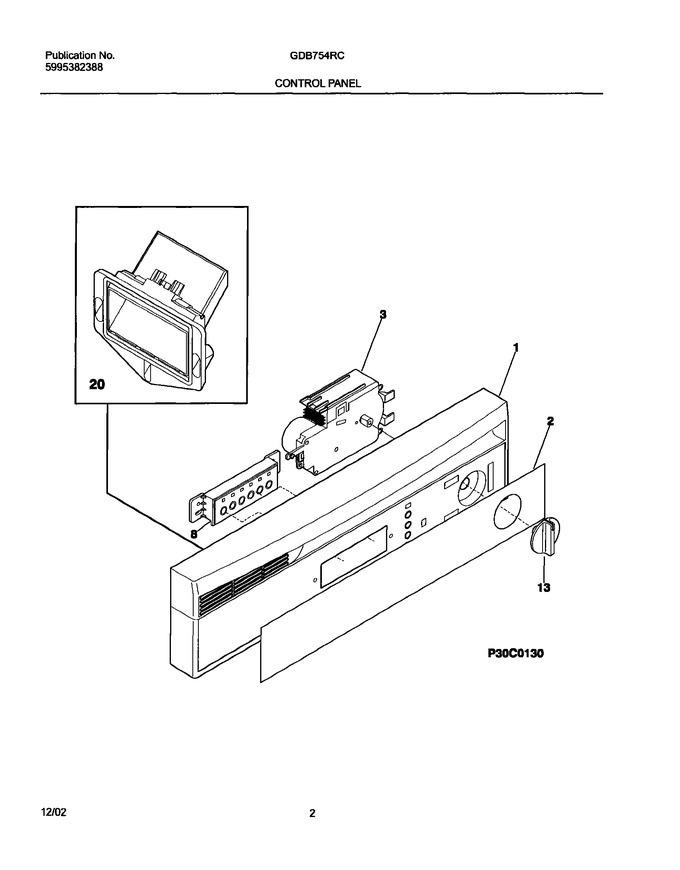

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154368206		Panel,control ,black				$ 80.53
2	154455103		Insert,control Panel ,black		Appelez-nous	-
13	154239301		Knob-timer, Black				$ 48.46
20	154433001		Vent Assy,static Dry				$ 50.82
F3	154409001		Timer				$ 460.74
F8	154373701		Switch-selector,6 Button		Appelez-nous	-
NI	154455701		Wiring Harness		Appelez-nous	-
NI	154248601		Shield,switch		Appelez-nous	-
NI	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
NI	154436201		Screw,dry Duct ,(3)		Appelez-nous	-
NI	154399008		Label,energy Guide		Appelez-nous	-
NI	154131203		Shield-timer		Appelez-nous	-
NI	154095701		Screw,thread Rolling ,(2) ,timer				$ 10.34
