SELECT A DIAGRAM

01 - Cover


02 - Control Panel


04 - Door


06 - Tub


08 - Motor & Pump

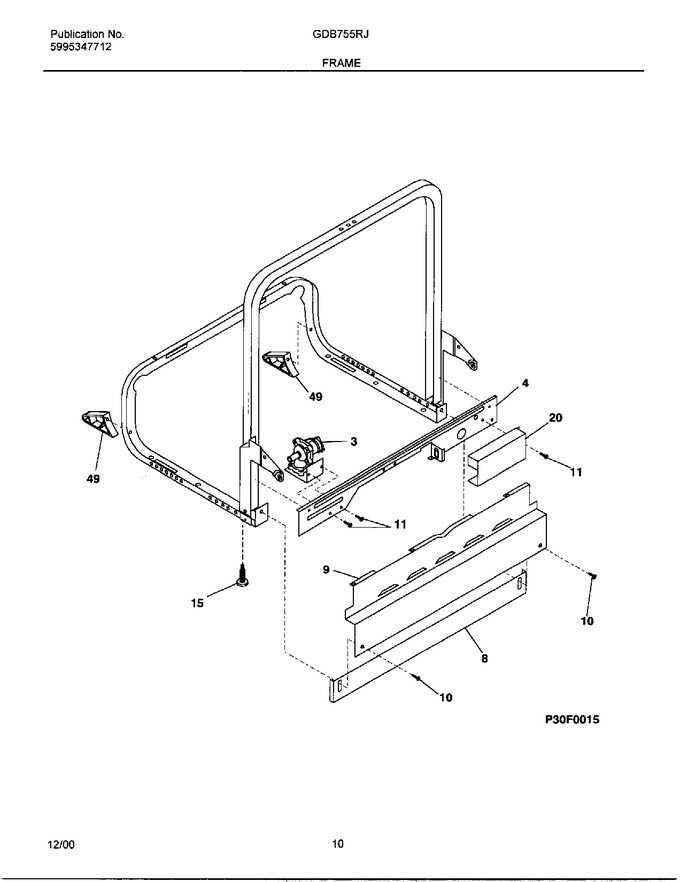

10 - Frame


12 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	5304508587		Brace-front   (Replaces: 154208701)				$ 28.92
8	154745503		Toeplate-adjustable   (Replaces: 154322903)			Immediately	$ 15.75
9	5304501484		Kickplate/baffle Assy,black   (Replaces: 154370703)			Immediately	$ 51.08
10	154419403		Screw,8a X .375``   (Replaces: 5300808658)				$ 13.10
11	154200601		Screw-10-16 X 3/8				$ 7.98
15	154210901		Screw-leveling		Appelez-nous	-
20	154209601		Cover-junction Box				$ 39.80
49	154227401		Guard-motor		Appelez-nous	-
F3	154637401		Valve,water   (Replaces: 154359801)			Immediately	$ 21.36
NI	154041001		Screw,plask 1 ,10-10 X 9/16		Appelez-nous	-
NI	5300808749		Screw, C.r. Truss, 8 .625		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
