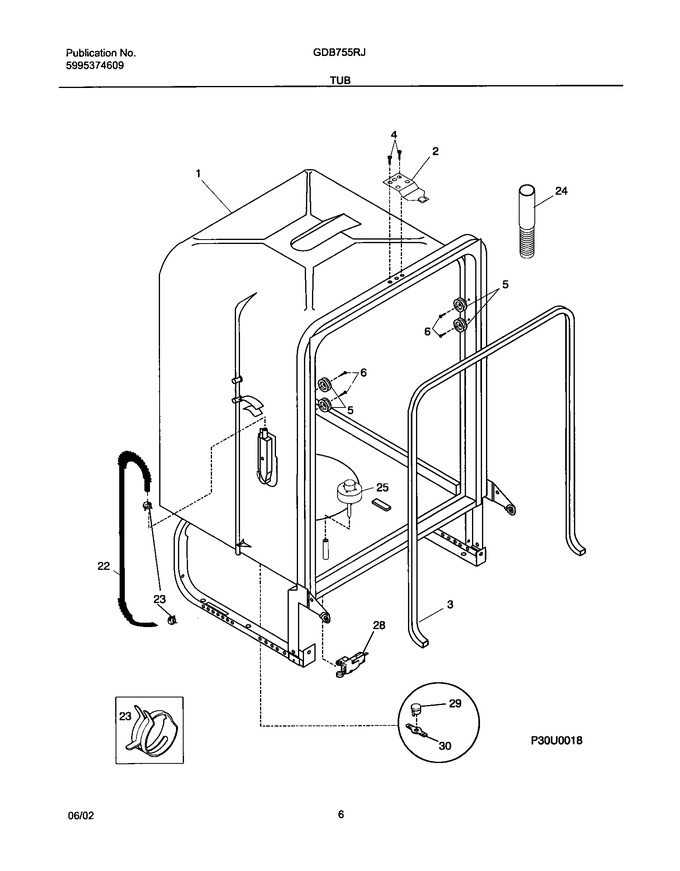

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	154662601		Strike-door   (Replaces: 154211601)			Immediately	$ 39.69
4	154200602		Screw,10-16 X 3/8 ,hex				$ 10.21
5	154333901		Roller-tub		Appelez-nous	-
6	5303943103		Screw W/washer,(8)			Immediately	$ 17.72
22	5304523457		Tubing-water Inlet   (Replaces: 154239801)			Immediately	$ 14.03
23	5304538466		Clamp-tubing,(2)   (Replaces: 5303318539)				$ 2.31
28	154773201		Switch Assy,float   (Replaces: 154408701)			Immediately	$ 55.29
30	154241101		Retainer,thermostat				$ 3.62
F1	154209301		Tub Assy, W/frame Parts				$ 453.86
F24	807117001		Hose,drain   (Replaces: 154411002)			Immediately	$ 36.14
F25	5304532207		Float   (Replaces: 154209701)			Immediately	$ 6.89
F29	154290204		Thermostat,re-settable			Immediately	$ 64.49
F3	8581548276014		Gasket-tub   (Replaces: 154211801)			Immediately	$ 26.30
NI	154297701		Screw,retainer-thermo				$ 13.46
NI	154641601		Insulation,tub   (Replaces: 154238304)				$ 6.15
NI	154360201		Insulation, Blanket, Back		Appelez-nous	-
NI	154041001		Screw,plask No.1 ,10-10 X 9/16		Appelez-nous	-
NI	5300807270		Screw,(2) ,countertop Mtg.				$ 6.72

    View Diagram in Separate Window       Print Part List
