02 - Cabinet/drum


03 - Front Panel/lint Filter

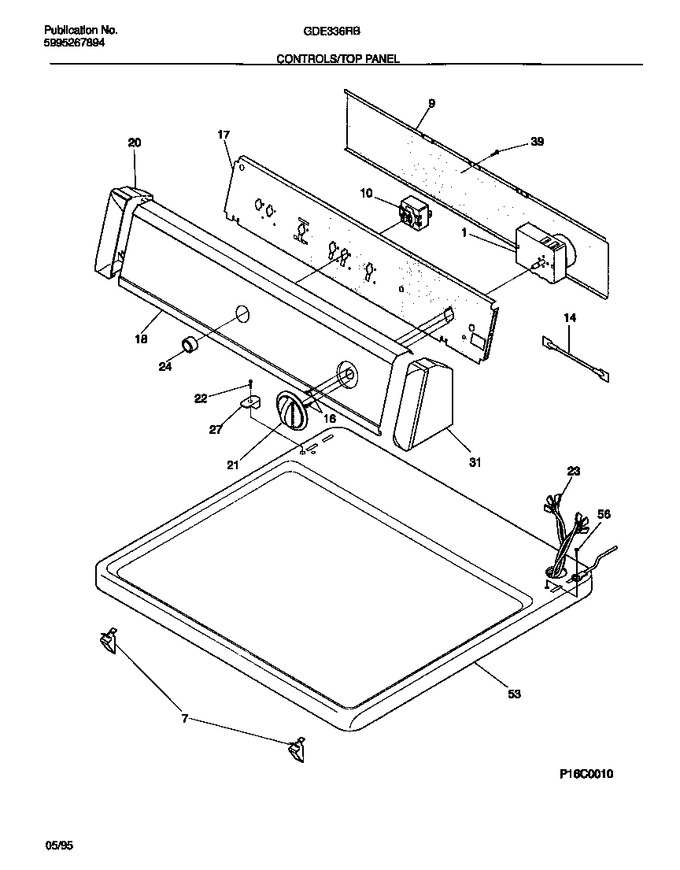

04 - Controls/top Panel


05 - Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131225300		Timer				$ 318.89
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
9	3205898		Backsheet-console		Appelez-nous	-
10	131048000		Switch-push/start		Appelez-nous	-
14	3205243		Resistor-power, 4.4k		Appelez-nous	-
16	218359202		Screw-timer, Cr Pan Head, 8-32 X 0.25, Thread Forming   (Replaces: 5303283289)				$ 10.63
17	131297306		Bracket-controls		Appelez-nous	-
18	131426400		Panel-control		Appelez-nous	-
20	5303291343		End Cap-l.h.		Appelez-nous	-
21	131030801		Knob-timer		Appelez-nous	-
22	131266310		Screw, Poh Ab Wht Hd, 8-18 X 1.250		Appelez-nous	-
23	131235100		Harness		Appelez-nous	-
24	131111501		Knob-start Switch				$ 13.79
27	131197000		Clip-console Mtg				$ 13.62
31	5303291351		End Cap-r.h.		Appelez-nous	-
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
53	131130402		Panel, Top, White		Appelez-nous	-
56	131243800		Screw, Pan Hd Locking, 8-32ca X 0.375, Cr/sq Drive				$ 10.46
*26602	5303281103		Tie-harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
