Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 316008800 Panel-manifold Appelez-nous -
2 5303208662 Switch-oven Light Appelez-nous -
3 5303212934 Knob-top Valve Appelez-nous -
4 3204880 Knob - Thermo Appelez-nous -
5 316041200 Clock-t.o.d. Appelez-nous -
6 3131472 Knob-clock Appelez-nous -
7 5303281650 Screw-burner Appelez-nous -
8 08067746 Brkt-main Top Hng Lh Appelez-nous -
9 08067747 Brkt-main Top Hng Rh Appelez-nous -
10 3131190 Cover-vent Appelez-nous -
11 318228310 Grate (4)   (Replaces: 5303269632) In-Stock Immediately $ 22.91

12 316010901 Cap-burner (4) Special Order $ 69.01

13 316032411 Thermostat   (Replaces: 5303271464) In-Stock Immediately $ 165.14

14 316010406 Main Top (chrome) Appelez-nous -
15 316011300 Trim-ring (black) (4) Special Order $ 68.59

14A 5303271891 Gusset-mtg Rh Appelez-nous -
14B 5303271892 Gusset-mtg Lh Appelez-nous -

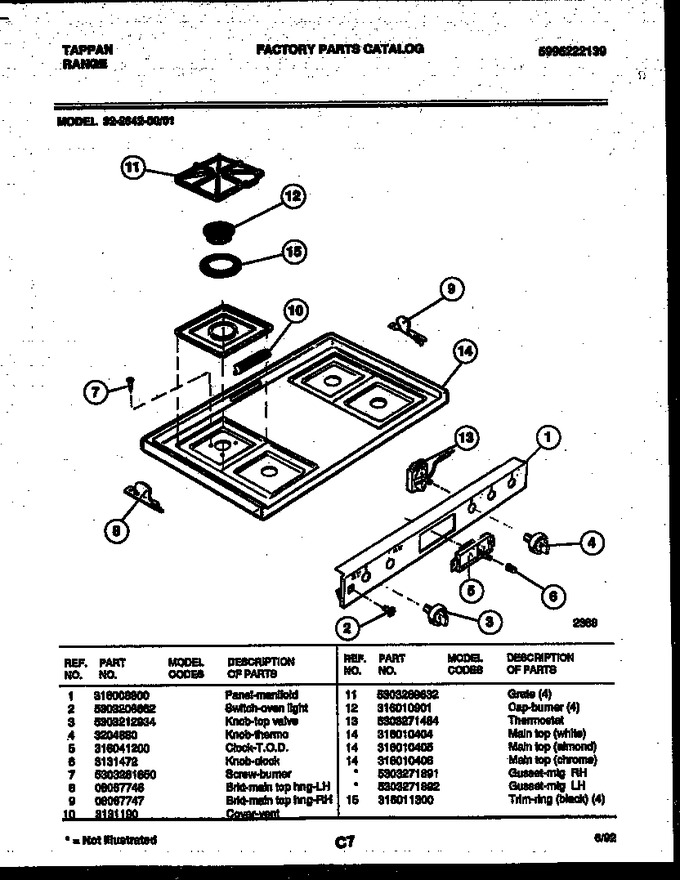

    View Diagram in Separate Window     Print Icon   Print Part List
