SELECT A DIAGRAM

01 - Cover


02 - Cabinet/drum


03 - Front Panel/lint Filter

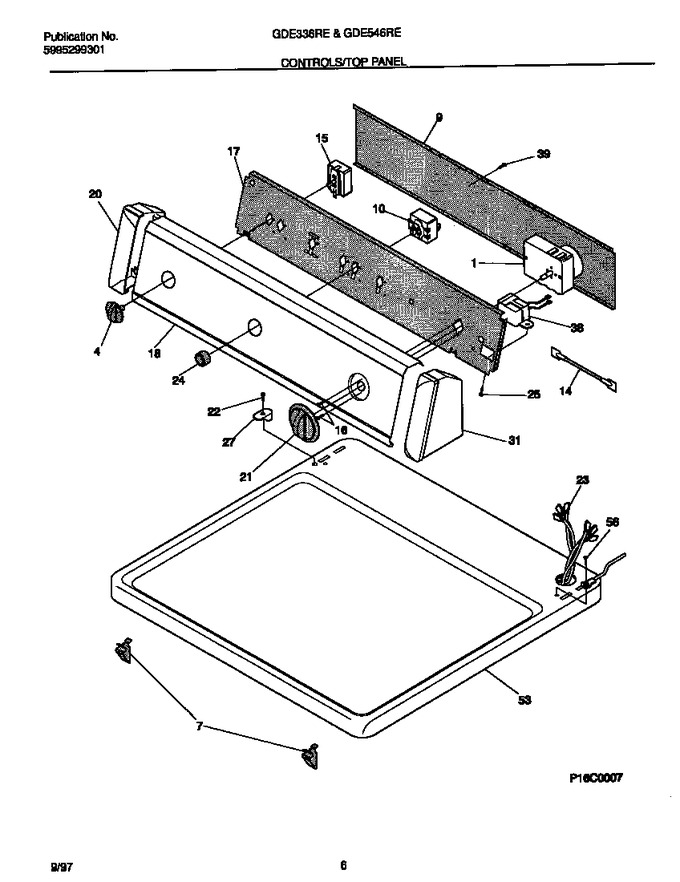

04 - Controls/top Panel


05 - Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131225300		Timer-dryer				$ 318.89
4	131032501		Knob-rotary, White/gray		Appelez-nous	-
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
9	3205898		Backsheet-console		Appelez-nous	-
10	131469000		Switch-push/start			Immediately	$ 55.81
14	3205243		Resistor-power, 4.4k		Appelez-nous	-
16	218359202		Screw, Cr Pan Head, 8-32 X 0.25, Thread Forming   (Replaces: 5303283289)				$ 10.63
17	131297306		Bracket-controls		Appelez-nous	-
18	131426400		Panel-control		Appelez-nous	-
20	5303291343		End Cap, White, Lh		Appelez-nous	-
21	131030801		Knob-timer		Appelez-nous	-
22	131266310		Screw-end Cap, Poh Ab Wht Hd, 8-18 X 1.250		Appelez-nous	-
23	131515400		Harness-main Dryer		Appelez-nous	-
24	131111501		Knob-start Switch, White				$ 13.79
25	5303015671		Screw		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
31	5303291351		End Cap, White, Rh		Appelez-nous	-
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
53	131601318		Panel-top White		Appelez-nous	-
56	131243800		Screw, Pan Hd Locking, 8-32ca X 0.375, Cr/sq Drive				$ 10.46

    View Diagram in Separate Window       Print Part List
