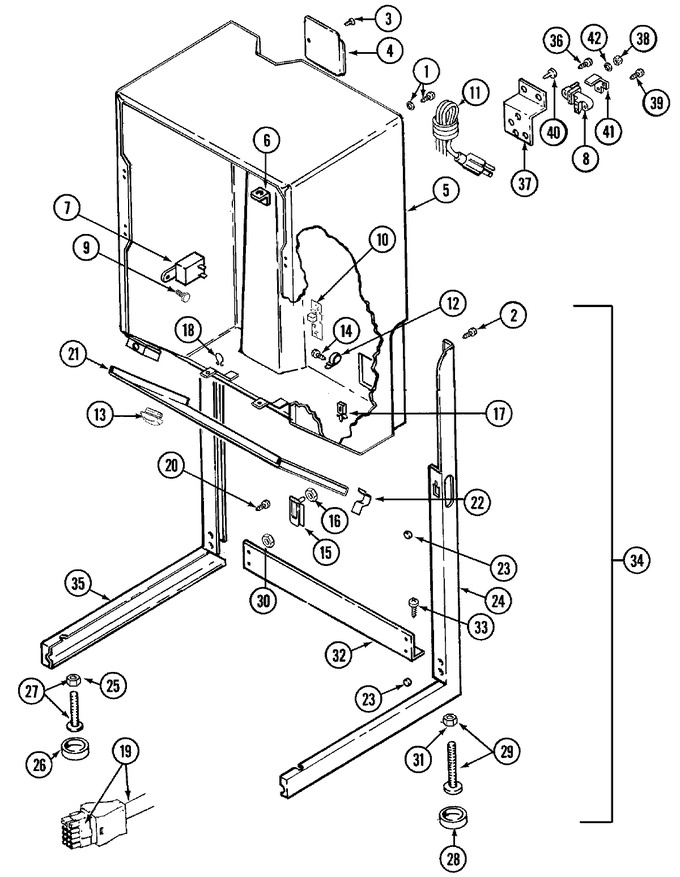

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10850756 | Screw----na (Replaces: 33001245) | 10 |
|
$ 6.98 | ||||
| 2 | 314663 | Screw | 10 |
|
- | ||||
| 3 | Y313561 | Screw----na | 10 |
|
$ 5.27 | ||||
| 4 | 314470 | Cover, Terminal | 10 |
|
- | ||||
| 5 | 308055 | Cabinet (wht) | 10 |
|
- | ||||
| 6 | 312548 | Fastener-access Panel To Ca | 10 |
|
- | ||||
| 7 | Y308205 | Buzzer | 10 |
|
- | ||||
| 8 | 400008 | Block, Terminal | 10 |
|
$ 29.20 | ||||
| 9 | WPW10139210 | Screw, No.8 X 5/16 Inch (Replaces: 211168) | 10 |
|
$ 6.75 | ||||
| 10 | WP33001212 | Board, Control-moisture Sensor (Replaces: 33001212) | 10 |
|
$ 269.69 | ||||
| 11 | 33001823 | Cord, Dryer 6ft 30a-3wr | 10 |
|
- | ||||
| 12 | 8534021 | Clamp, Cable (Replaces: 22001929) | 10 |
|
$ 7.59 | ||||
| 13 | 22001010 | Bumper (wht) | 10 |
|
- | ||||
| 14 | Y310632 | Screw | 10 |
|
- | ||||
| 15 | 314489 | Guide, Pin | 10 |
|
- | ||||
| 16 | 214872 | Palnut, End Cap | 10 |
|
- | ||||
| 17 | WP3177991 | Screw (Replaces: Y251119) | 10 |
|
Immediately | $ 6.47 | |||
| 18 | 315471 | Retainer, Wire | 10 |
|
- | ||||
| 19 | 33001553 | Harness, Wire (dryer) | 10 |
|
- | ||||
| 19 | 22001930 | Wire Harness (upper) | 10 |
|
- | ||||
| 20 | 314477 | Screw, Access Panel | 10 |
|
- | ||||
| 21 | 33001130 | Shield, Reflective | 10 |
|
- | ||||
| 21 | 33001050 | Panel, Access (wht) | 10 |
|
- | ||||
| 22 | 314482 | Fastener, Spring | 10 |
|
- | ||||
| 23 | 314498 | Pad, Dryer Leg | 10 |
|
- | ||||
| 24 | 33001293 | Leg Assy. (rt-wht) | 10 |
|
- | ||||
| 25 | WP62739 | Nut (Replaces: Y052740) | 10 |
|
$ 6.85 | ||||
| 26 | Y314137 | Foot, Rubber | 10 |
|
$ 14.08 | ||||
| 27 | WP233550 | Adjustable Leg & Nut (Replaces: Y305086) | 10 |
|
$ 7.16 | ||||
| 28 | WP210684 | Foot, Rubber (Replaces: 210684) | 10 |
|
Immediately | $ 14.09 | |||
| 29 | 22003428 | Leg, Adjustable (w/nut) (Replaces: Y302699) | 10 |
|
Immediately | $ 14.41 | |||
| 30 | Y052721 | Nut | 10 |
|
$ 21.38 | ||||
| 31 | WP210385 | Nut, Lock (Replaces: 210385) | 10 |
|
$ 6.26 | ||||
| 32 | 314499 | Brace | 10 |
|
- | ||||
| 33 | 22001402 | Screw | 10 |
|
- | ||||
| 34 | Y306110 | Stand, Dryer (complete) (wht) | 10 |
|
- | ||||
| 35 | 33001295 | Leg Assy. (lt-wht) | 10 |
|
- | ||||
| 36 | W11164114 | Screw, No.10-24 X 3/4 Inch (Replaces: Y312209) | 10 |
|
$ 3.76 | ||||
| 37 | Y312904 | Bracket, Terminal Block | 10 |
|
- | ||||
| 38 | WP112432 | Nut, Terminal Block (Replaces: 311484) | 10 |
|
$ 7.16 | ||||
| 39 | W10850756 | Screw----na (Replaces: 33001245) | 10 |
|
$ 6.98 | ||||
| 40 | Y310632 | Screw | 10 |
|
- | ||||
| 41 | Y312184 | Strap, Ground | 10 |
|
- | ||||
| 42 | Y311270 | Washer, Terminal Block | 10 |
|
$ 8.75 |
