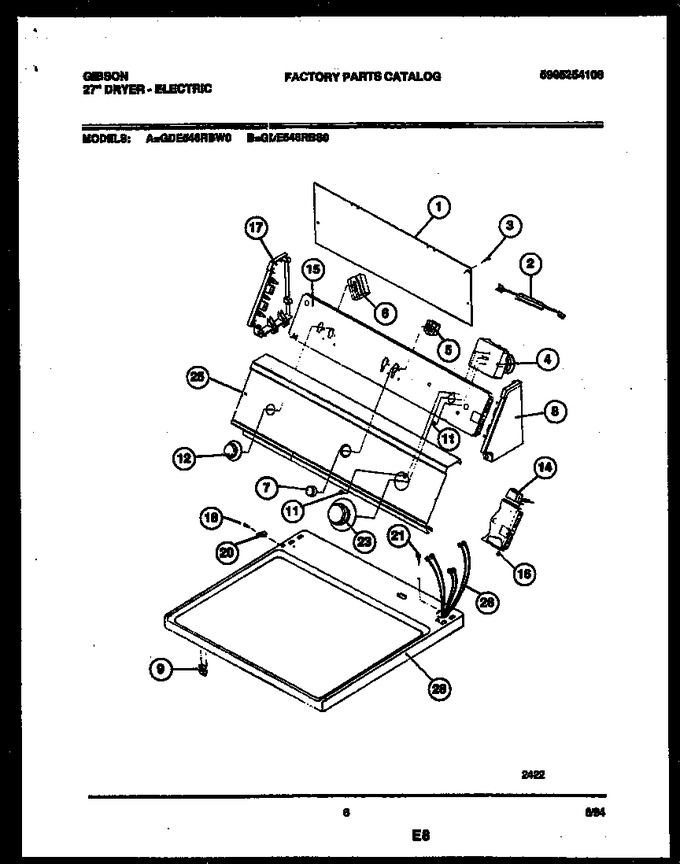

02 - Cabinet And Component Parts
03 - Door Parts
04 - Console And Control Parts
05 - Blower And Drive Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205898 | Backsheet |
|
- | |||||
| 2 | 3205243 | Resistor |
|
- | |||||
| 3 | 131205100 | Screw (4) |
|
Immediately | $ 14.18 | ||||
| 4 | 131719100 | Timer (Replaces: 131063200) |
|
Immediately | $ 269.37 | ||||
| 5 | 131048000 | Switch, Start |
|
- | |||||
| 6 | 131048100 | Switch, Temperature |
|
- | |||||
| 7 | 131111501 | Pushbutton |
|
$ 13.79 | |||||
| 8 | 5303291351 | End Cap-r.h. |
|
- | |||||
| 9 | 3205821 | Spring Catch |
|
Immediately | $ 35.44 | ||||
| 11 | 218359202 | Screw (Replaces: 5303283289) |
|
$ 10.63 | |||||
| 12 | 131032501 | Knob-rotary |
|
- | |||||
| 14 | 5303210285 | Buzzer |
|
$ 65.78 | |||||
| 15 | 131297306 | Bracket-controls |
|
- | |||||
| 16 | 5303015671 | Screw |
|
- | |||||
| 17 | 5303291343 | End Cap-l.h. |
|
- | |||||
| 18 | 5303297854 | Screw |
|
- | |||||
| 20 | 131197000 | Clip |
|
$ 13.62 | |||||
| 21 | 131243800 | Screw |
|
$ 10.46 | |||||
| 23 | 131030801 | Knob-timer |
|
- | |||||
| 25 | 131289800 | Panel-control |
|
- | |||||
| 26 | 131235300 | Harness |
|
- | |||||
| 28 | 131130402 | Panel, Top, White |
|
- | |||||
| 28 | 5303931763 | Panel, Top, Almond |
|
- |
