SELECT A DIAGRAM

01 - Cover


02 - P16v0037 Dry Cab,heater


03 - P16d0020 Frnt Pnl,door


04 - P16c0082 Control Panel


05 - P16m0019 Motor,blower


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131719100		Timer-dryer			Immediately	$ 269.37
4	131032501		Knob-rotary, White/gray		Appelez-nous	-
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
9	3205898		Backsheet-console		Appelez-nous	-
10	131469000		Switch-push/start			Immediately	$ 55.81
14	3205243		Resistor-power, 4.4k		Appelez-nous	-
15	131048100		Switch, Temperature		Appelez-nous	-
16	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
17	131728900		Bracket-control		Appelez-nous	-

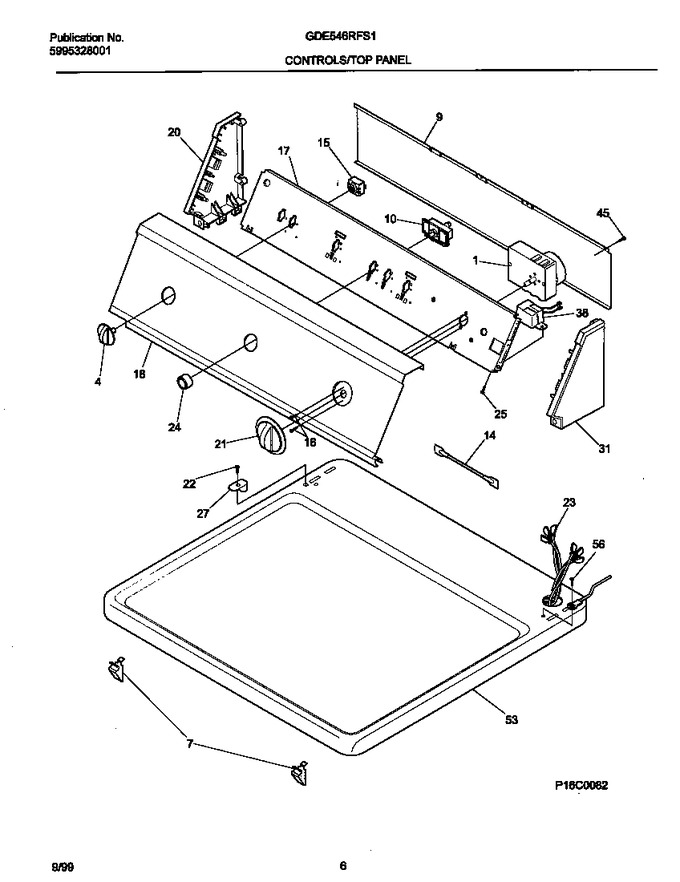

18	131692400		Panel-control,white		Appelez-nous	-
20	5303291343		End Cap, White, Lh		Appelez-nous	-
21	131030801		Knob-timer		Appelez-nous	-
22	131266310		Screw-end Cap, Poh Ab Wht Hd, 8-18 X 1.250		Appelez-nous	-
23	131845500		Harness Prh Elec		Appelez-nous	-
24	131111501		Button-start Switch,white				$ 13.79
25	5303015671		Screw,8-18 X .375		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
31	5303291351		End Cap, White, Rh		Appelez-nous	-
38	5303210285		Buzzer				$ 65.78
45	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
53	131601318		Panel-top White		Appelez-nous	-
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Driv				$ 10.46
