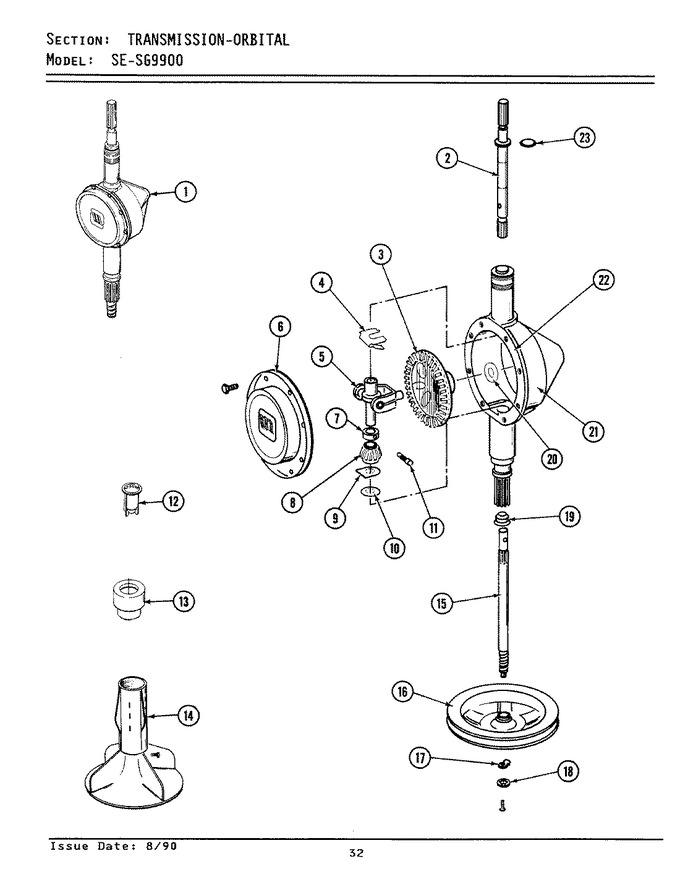

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
206707 |
|
Transmission, Orbital |
00 |
Appelez-nous
|
- |
|
|
|
| 2 |
207153 |
|
Shaft, Agitator (w/spring) |
00 |
Appelez-nous
|
- |
|
|
|
| 3 |
206713 |
|
Gear, Bevel |
00 |
Appelez-nous
|
- |
|
|
|
| 4 |
WP215581 |
 |
Spring, Agitator Shaft (Replaces: 215581) |
00 |
|
|
$ 7.47 |
|
|
| 5 |
206685 |
|
Block, Torque And Yoke Assembl |
00 |
Appelez-nous
|
- |
|
|
|
| 6 |
206628 |
|
Cover, Transmission |
00 |
Appelez-nous
|
- |
|
|
|
| 6 |
215417 |
|
Screw, Transmission Cover |
00 |
Appelez-nous
|
- |
|
|
|
| 7 |
215415 |
|
Collar, Lower |
00 |
Appelez-nous
|
- |
|
|
|
| 8 |
WPW10221114 |
 |
Pinion (Replaces: 215401) |
00 |
|
|
$ 58.63 |
|
|
| 9 |
WP215395 |
 |
Plate, Clutch (Replaces: 215395) |
00 |
|
Immediately |
$ 6.79 |
|
|
| 10 |
WP6-2114830 |
 |
Washer, Splined (Replaces: 211483) |
00 |
|
|
$ 7.05 |
|
|
| 11 |
WPY206629 |
 |
Pin, Collar (Replaces: Y206629) |
00 |
|
|
$ 7.88 |
|
|
| 12 |
215733 |
|
Dispensing Cup |
00 |
Appelez-nous
|
- |
|
|
|
| 13 |
215721 |
|
Dispensing Cap |
00 |
Appelez-nous
|
- |
|
|
|
| 14 |
207538 |
|
Agitator W/lock Screw |
00 |
|
|
$ 102.74 |
|
|
| 14 |
206478 |
|
Screw & Washer For Agitator |
00 |
Appelez-nous
|
- |
|
|
|
| 15 |
215410 |
|
Center Shaft - Larger |
00 |
Appelez-nous
|
- |
|
|
|
| 16 |
WP6-2301530 |
 |
Pulley, Drive (Replaces: 211059) |
00 |
|
|
$ 178.73 |
|
|
| 17 |
WP912618 |
 |
Screw,stop Lug(center Shaft) (Replaces: 211375) |
00 |
|
|
$ 6.98 |
|
|
| 17 |
WP211089 |
 |
Lug, Stop (Replaces: 211089) |
00 |
|
|
$ 10.16 |
|
|
| 18 |
WP22003555 |
 |
Washer, Lock (Replaces: 211090) |
00 |
|
|
$ 19.26 |
|
|
| 19 |
206602 |
|
Seal, Lip (center Shaft) |
00 |
Appelez-nous
|
- |
|
|
|
| 20 |
215394 |
|
Washer, Bevel Gear |
00 |
Appelez-nous
|
- |
|
|
|
| 21 |
206624 |
|
Housing, Transmission |
00 |
Appelez-nous
|
- |
|
|
|
| 22 |
W10841140 |
 |
Silastic,adh.sealant (Replaces: Y058700) |
00 |
|
Immediately |
$ 24.92 |
|
|
| 23 |
210690 |
 |
Seal, Rubber |
00 |
|
|
$ 13.19 |
|
|
