View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

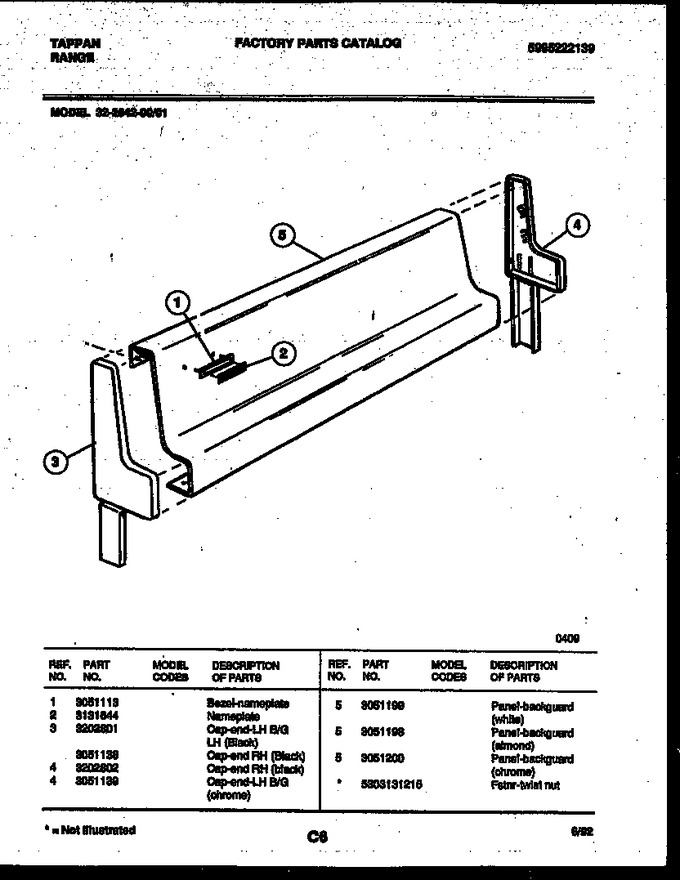

02 - Backguard
03 - Cooktop Parts
04 - Broiler Drawer Parts
05 - Door Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051113 | Bezel, Nameplate |
|
- | |||||
| 2 | 3131644 | Name Plate |
|
- | |||||
| 3 | 3051138 | Cap-end Rh (black) |
|
- | |||||
| 3 | 3202801 | Cap-end-lh B/g Lh (black) |
|
- | |||||
| 4 | 3202802 | Cap-end Rh (black) |
|
- | |||||
| 5 | 3051198 | Panel-backguard, Almond |
|
- | |||||
| *72378 | 5303131215 | Fstnr-twist Nut |
|
- |
