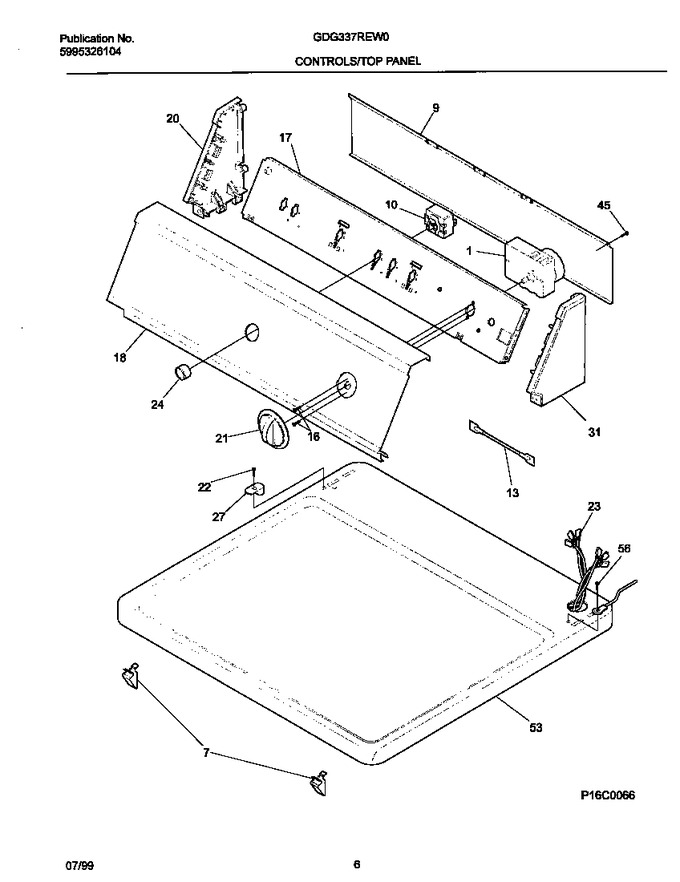

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131062400		Timer-dryer				$ 329.81
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
9	3205898		Backsheet-console		Appelez-nous	-
10	131469000		Switch-push/start			Immediately	$ 55.81
13	5308015784		Resistor		Appelez-nous	-
16	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
17	131728900		Bracket-control		Appelez-nous	-
18	131508900		Panel-control, Gray/black		Appelez-nous	-
20	5303291344		End Cap, Black, Lh				$ 59.59
21	131118902		Knob-timer		Appelez-nous	-
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
23	131517200		Harness		Appelez-nous	-
24	131111500		Knob-start Switch, Black				$ 13.55
27	131197000		Clip-control Panel				$ 13.62
31	5303291352		End Cap, Black, Rh				$ 56.49
45	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
53	131601318		Panel-top White		Appelez-nous	-
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Driv				$ 10.46
*14244	131827600		Bezel-gibson-blk/wht Print		Appelez-nous	-
