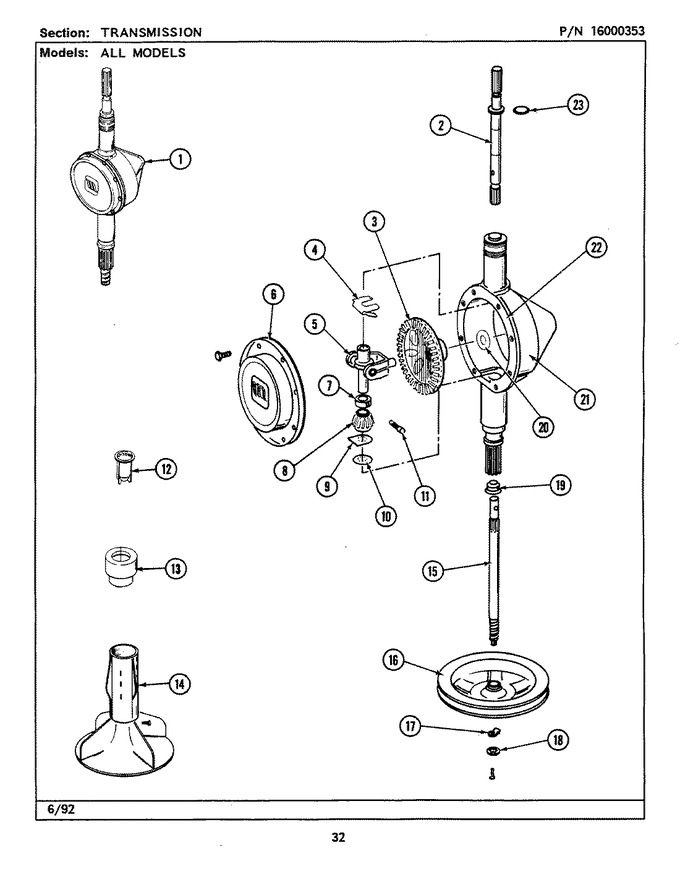

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	206707		Transmission, Orbital	A0	Appelez-nous	-
2	207153		Shaft, Agitator (w/spring)	A0	Appelez-nous	-
3	206713		Gear, Bevel	A0	Appelez-nous	-
4	WP215581		Spring, Agitator Shaft   (Replaces: 215581)	A0			$ 7.47
5	206685		Block, Torque And Yoke Assembl	A0	Appelez-nous	-
6	206628		Cover, Transmission	A0	Appelez-nous	-
6	215417		Screw, Transmission Cover	A0	Appelez-nous	-
7	215415		Collar, Lower	A0	Appelez-nous	-
8	WPW10221114		Pinion   (Replaces: 215401)	A0			$ 58.63
9	WP215395		Plate, Clutch   (Replaces: 215395)	A0		Immediately	$ 6.79
10	WP6-2114830		Washer, Splined   (Replaces: 211483)	A0			$ 7.05
11	WPY206629		Pin, Collar   (Replaces: Y206629)	A0			$ 7.88
12	215733		Dispensing Cup	A0	Appelez-nous	-
13	215721		Dispensing Cap	A0	Appelez-nous	-
14	207538		Agitator W/lock Screw	A0			$ 102.74
14	206478		Screw & Washer For Agitator	A0	Appelez-nous	-
15	215410		Center Shaft - Larger	A0	Appelez-nous	-
16	WP6-2301530		Pulley, Drive   (Replaces: 211059)	A0			$ 178.73
17	WP912618		Screw,stop Lug(center Shaft)   (Replaces: 211375)	A0			$ 6.98
17	WP211089		Lug, Stop   (Replaces: 211089)	A0			$ 10.16
18	WP22003555		Washer, Lock   (Replaces: 211090)	A0			$ 19.26
19	206602		Seal, Lip (center Shaft)	A0	Appelez-nous	-
20	215394		Washer, Bevel Gear	A0	Appelez-nous	-
21	206624		Housing, Transmission	A0	Appelez-nous	-
22	W10841140		Silastic,adh.sealant   (Replaces: Y058700)	A0		Immediately	$ 24.92
23	210690		Seal, Rubber	A0			$ 13.19
