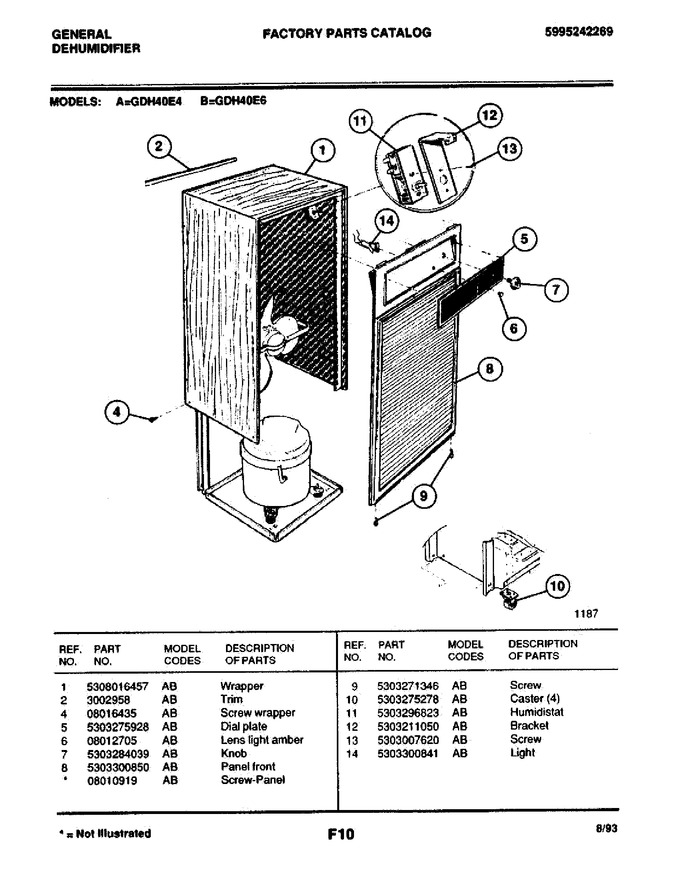

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308016457 | Wrapper |
|
- | |||||
| 2 | 3002958 | Trim |
|
- | |||||
| 4 | 08016435 | Screw Wrapper |
|
- | |||||
| 5 | 5303275928 | Name Plate |
|
- | |||||
| 6 | 08012705 | Lens Light Amber |
|
- | |||||
| 7 | 5303284039 | Knob |
|
- | |||||
| 8 | 5303300850 | Panel-front |
|
- | |||||
| 9 | 5303271346 | Screw |
|
- | |||||
| 10 | 5303275278 | Caster |
|
$ 30.40 | |||||
| 11 | 5303296823 | Humidistat |
|
$ 142.17 | |||||
| 12 | 5303211050 | Bracket |
|
- | |||||
| 13 | 5303007620 | Screw |
|
$ 9.31 | |||||
| 14 | 5303300841 | Light |
|
- | |||||
| 08010919 | Screw-panel |
|
- |
