SELECT A DIAGRAM

01 - Cover


03 - Door

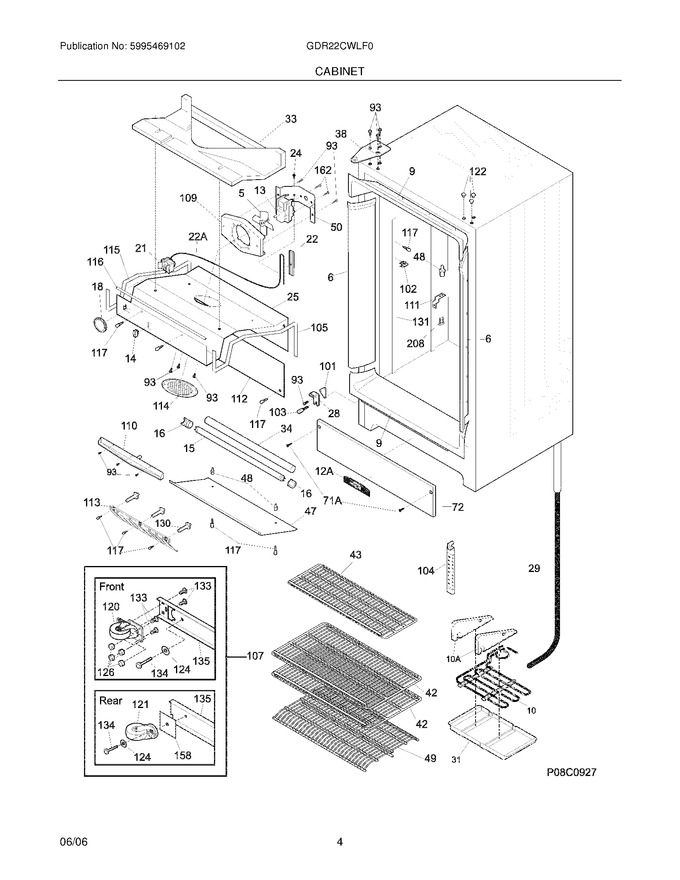

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	216604100		Breaker Kit W/corners		Appelez-nous	-
9	216603300		Breaker Kit W/corners,32`` ,top Or Bottom				$ 94.19
10	216999400		Tubing- Heater,formed				$ 29.10
14	216660000		Switch, Rocker				$ 57.96
15	216659500		Bulb-light,40w,130v				$ 157.08
16	216659900		Socket-light/lamp				$ 32.50
18	216591506		Knob,temp Control   (Replaces: 216591500)				$ 29.06
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
25	216659100		Cover-evaporator		Appelez-nous	-
28	216658900		Hinge-bottom				$ 48.10
29	216361901		Hose-drain				$ 93.14
31	216732400		Pan-drain				$ 208.48
33	216680900		Duct-air		Appelez-nous	-
34	216659400		Shield-light				$ 62.53
38	216658800		Hinge-upper		Appelez-nous	-
42	216681900		Shelf,white ,(2)		Appelez-nous	-
43	216682000		Shelf,white		Appelez-nous	-
47	216680600		Deflector-air		Appelez-nous	-
48	08000456		Spacer Baffle Plate		Appelez-nous	-
49	216681800		Trivet		Appelez-nous	-
50	08013207		Bracket Fan Motor				$ 12.92
72	216330500		Grille/kickplate		Appelez-nous	-
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
101	216335700		Plate-hinge, Tapping		Appelez-nous	-
102	297121900		Support Shelf,adjustable   (Replaces: 216605300)			Immediately	$ 12.13
103	216336300		Standoff-base Panel				$ 71.51
104	216360600		Thermometer		Appelez-nous	-
105	216361100		Gasket-cover Evap, Rh		Appelez-nous	-
107	297085800		Castor Kit				$ 241.59
107	297086600		Caster,hardware Kit		Appelez-nous	-
109	297014200		Venturi,blower				$ 56.44
110	216377000		Pan-drain, Condensate				$ 222.14
111	297066000		Bracket-evap Cover		Appelez-nous	-
112	216381300		Cover-drain,condensate				$ 134.09
113	216383600		Grate-air Intake		Appelez-nous	-
114	297014400		Cover-blower				$ 58.59
115	216383700		Gasket-evap Cover, Lh		Appelez-nous	-
116	216383800		Gasket-evap Cover, Front		Appelez-nous	-
117	216605500		Thumbscrew				$ 13.39
120	216658200		Roller-front,w/brake ,(2)				$ 320.93
121	216495200		Roller-rear,(2)		Appelez-nous	-
122	216429601		Plug,white		Appelez-nous	-
124	216658500		Washer,flat ,5/16 ,front		Appelez-nous	-
126	216658600		Nut,locking ,5/16-18 ,front ,(10)		Appelez-nous	-
130	216486800		Support,evaporator Mtg		Appelez-nous	-
131	216605200		Shelf-standard		Appelez-nous	-
133	216658400		Bolt,caster ,5/16 Sq. Neck ,front ,(8)		Appelez-nous	-
134	297084400		Bolt,castor ,5/16`` 18x1.625 ,rear		Appelez-nous	-
135	216658101		Support-casters,white		Appelez-nous	-
158	297078600		Plate-spacer				$ 23.06
162	216912400		Screw,hex Washer Head ,no.8-32 X .500 ,bracket Fan Mtr,(2)		Appelez-nous	-
208	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
10A	216933700		Bracket,drain Pan				$ 7.33
12A	216734600		Nameplate		Appelez-nous	-
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
71A	216395800		Screw,1/4 20 X 1/2				$ 4.52
F111	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
F13	297309000		Motor,fan ,115 V   (Replaces: 216934100)			Immediately	$ 55.32
F21	5304495001		Control-temperature   (Replaces: 216660600)			Immediately	$ 95.54
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
NI	5303321319		Paint,touch-up ,white			Immediately	$ 13.46
NI	216683600		Plug-hole,hinge Pin		Appelez-nous	-
NI	216742700		Screw,8-18 X 9/16 ,white ,(4)		Appelez-nous	-
NI	216821400		Ballast,fl Lamp				$ 161.15
NI	297069500		Harness,electrical ,evaporator				$ 155.24
NI	5303311565		Clip-cable				$ 2.10
NI	297001707		Spacer-tube,42``		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
