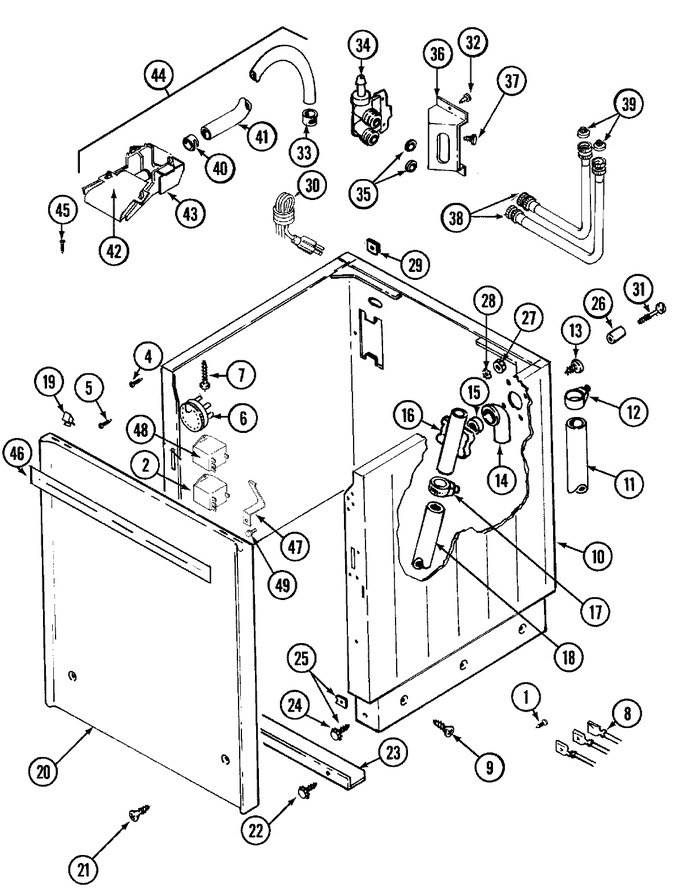

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3177991		Screw   (Replaces: Y251119)	A0		Immediately	$ 6.47
2	206421		Relay-motor Reversing	A0	Appelez-nous	-
3	Y310376		Clip, Wire Harness	A0	Appelez-nous	-
4	WP90767		Screw   (Replaces: 33001324)	A0		Immediately	$ 7.04
5	WP3177991		Screw   (Replaces: Y251119)	A0		Immediately	$ 6.47
6	WP206418		Water Level Switch-digital   (Replaces: 206418)	A0			$ 241.77
7	214354		Screw	A0	Appelez-nous	-
8	22001587		Harness, Wire (upr)	15	Appelez-nous	-
8	22001430		Wire Harness, Main	A2	Appelez-nous	-
8	208779		Wire Harness (upr)	A0	Appelez-nous	-
9	213007		Screw, Cabinet	A0			$ 10.99
10	22001065		Cabinet (wht)	A0	Appelez-nous	-
11	216017		Hose, Drain (7/8``i.d.)	A0	Appelez-nous	-
11	Y059149		(7/8`` I.d. Carton Of 50 Ft.)	A0	Appelez-nous	-
12	WP285655		Hose Clamp - 1-1/2 Inch   (Replaces: 200908)	A0		Immediately	$ 7.55
13	WPY014874		Screw   (Replaces: Y014874)	A0			$ 6.98
14	WPW10116738		Elbow, Siphon Break   (Replaces: Y216016)	A0		Immediately	$ 29.49
15	WP214765		Gasket, Siphon Break   (Replaces: 214765)	A0			$ 73.22
16	206638		Siphon Break(w/clamp)	A0		Immediately	$ 73.56
17	WP3367052		Clamp, Hose   (Replaces: 202574)	A0			$ 7.49
18	WP22001448		Hose   (Replaces: 215365)	A0			$ 79.87
19	215711		Fastener, Spring	A0	Appelez-nous	-
20	22001143		Damper, Sound	A0	Appelez-nous	-
20	22001144		Damper, Sound	A0	Appelez-nous	-
20	207205		Panel, Front (wht)	A0	Appelez-nous	-
21	213123		Screw, No.10 X 7/8 Inch----sub	A0	Appelez-nous	-
21	22001898		Screw (wht)	18	Appelez-nous	-
22	WP90767		Screw   (Replaces: 211294)	A0		Immediately	$ 7.04
23	213846		Guard, Belt	A0	Appelez-nous	-
24	WP27001200		Screw,cbnt.to Frnt Of Base--na   (Replaces: 213122)	A0			$ 6.91
25	204439		Screw & Fstner Assy(frt.panel)	A0			$ 8.80
26	215276		Bushing	A0	Appelez-nous	-
27	310557		Washer	A0	Appelez-nous	-
28	WP486255		Hex. Nut, No.8-32   (Replaces: Y052659)	A0			$ 5.54
29	22001009		Clip, Spring	A0	Appelez-nous	-
30	208784		Cord, Power	A0	Appelez-nous	-
31	WP67006908		Screw   (Replaces: 215277)	A0		Immediately	$ 7.16
32	WP90767		Screw   (Replaces: 212276)	A0		Immediately	$ 7.04
33	WP596669		Clamp,hose-injec.hose To Valve   (Replaces: 216169)	A0		Immediately	$ 7.56
34	22001277		Valve, Water----na	A0	Appelez-nous	-
35	Y013783		Gasket, Inlet Hose	A0			$ 18.72
36	215264		Bracket For Water Valve	A0	Appelez-nous	-
37	Y313561		Screw----na	A0			$ 5.27
38	WP76314		Inlet Hose Assy.   (Replaces: 200672)	A0			$ 38.79
39	200961		Screen Washer, Inlet Hose	A0	Appelez-nous	-
40	WP489503		Clamp, Hose   (Replaces: 216170)	A0		Immediately	$ 9.68
41	22001191		Hose, Injector (stack)	A0	Appelez-nous	-
42	22001187		Injector (upr)	A0			$ 35.13
43	WP22001186		Injector (lwr)   (Replaces: 22001186)	A0		Immediately	$ 75.68
44	22001175		Water Injector Assembly	A0	Appelez-nous	-
45	215537		Screw	A0	Appelez-nous	-
46	215266		Trim, Front Panel	A0	Appelez-nous	-
47	215273		Spring Clip	A0	Appelez-nous	-
48	901961		Relay (4 Contact)	A0	Appelez-nous	-
49	212949		Screw	A0	Appelez-nous	-
50	22001192		Glide	A0	Appelez-nous	-
