| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
314286 |
 |
Seal For Front Panel |
A2 |
|
|
$ 90.56 |
|
|
| 2 |
WP1163283 |
|
Screw, No.8 X 1/2 Inch (Replaces: 212277) |
A2 |
|
|
$ 6.47 |
|
|
| 3 |
33001420 |
|
Switch, Door |
A2 |
|
|
$ 26.75 |
|
|
| 4 |
WP98008544 |
 |
Panel, Fastener (Replaces: 33001486) |
A2 |
|
|
$ 11.89 |
|
|
| 4 |
33001397 |
|
Panel, Front (alm) |
A2 |
Appelez-nous
|
- |
|
|
|
| 5 |
912086 |
|
Clip,speed |
A2 |
Appelez-nous
|
- |
|
|
|
| 6 |
33001396 |
|
Wire Harness, Control |
A2 |
Appelez-nous
|
- |
|
|
|
| 7 |
LA-1003 |
 |
Catch, Door (female) (Replaces: Y304578) |
A2 |
|
Immediately |
$ 24.51 |
|
|
| 8 |
33001048 |
|
Control Assy. |
A2 |
|
|
$ 300.27 |
|
|
| 9 |
314482 |
|
Fastener, Spring |
A2 |
Appelez-nous
|
- |
|
|
|
| 10 |
306070 |
|
Speaker |
A2 |
Appelez-nous
|
- |
|
|
|
| 11 |
314560 |
|
Seal, Moisture |
A2 |
Appelez-nous
|
- |
|
|
|
| 12 |
488660 |
|
Fastener, Speednut (Replaces: 33001292) |
A2 |
Appelez-nous
|
- |
|
|
|
| 13 |
314517 |
|
Shield For Microprocessor |
A2 |
Appelez-nous
|
- |
|
|
|
| 14 |
314561 |
|
Air Seal |
A2 |
Appelez-nous
|
- |
|
|
|
| 15 |
WP90767 |
 |
Screw (Replaces: 211294) |
A2 |
|
Immediately |
$ 7.04 |
|
|
| 16 |
Y312304 |
|
Stud F/door |
A2 |
Appelez-nous
|
- |
|
|
|
| 17 |
M0282005 |
 |
Locknut (Replaces: 912077) |
A2 |
|
|
$ 7.07 |
|
|
| 18 |
912075 |
|
Circuit Board Spacer |
A2 |
Appelez-nous
|
- |
|
|
|
| 19 |
314481 |
|
Mounting Bracket |
A2 |
Appelez-nous
|
- |
|
|
|
| 20 |
210932 |
|
Screw, No.8 X 9/16 Ctsk |
A2 |
Appelez-nous
|
- |
|
|
|
| 21 |
WP90767 |
|
Screw (Replaces: Y313559) |
A2 |
|
Immediately |
$ 7.04 |
|
|
| 21 |
WP90767 |
|
Screw (Replaces: 211294) |
A2 |
|
Immediately |
$ 7.04 |
|
|
| 22 |
22001527 |
|
Touch & Mounting Pad |
A2 |
Appelez-nous
|
- |
|
|
|
| 23 |
22001526 |
|
Panel, Control (alm) |
A2 |
Appelez-nous
|
- |
|
|
|
| 24 |
22001430 |
|
Wire Harness, Main |
A2 |
Appelez-nous
|
- |
|
|
|
| 24 |
22001587 |
|
Harness, Wire (upr) |
15 |
Appelez-nous
|
- |
|
|
|
| 25 |
208780 |
|
Wire Harness, Washe (ac) |
A2 |
Appelez-nous
|
- |
|
|
|
| 26 |
33001394 |
|
Wire Harness, Main |
A2 |
Appelez-nous
|
- |
|
|
|

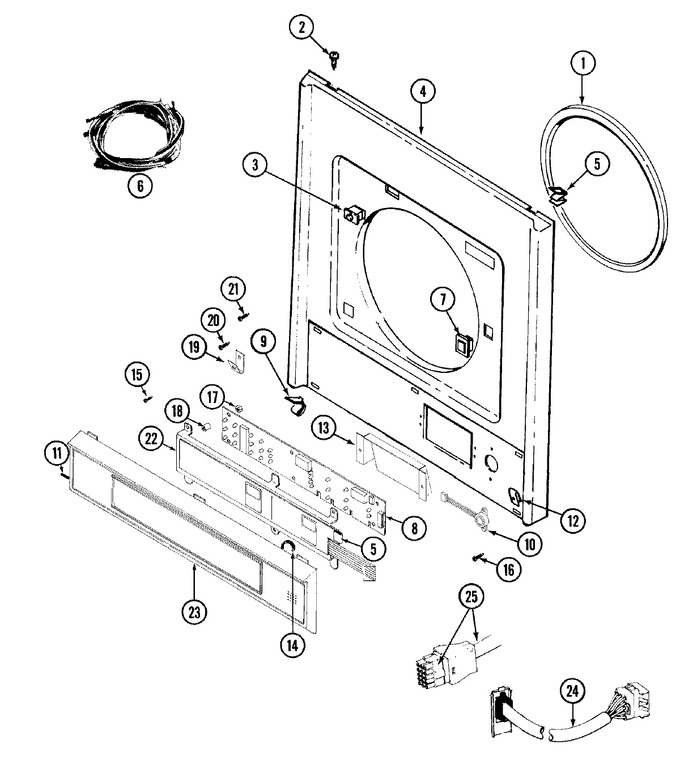

View Diagram in Separate Window
