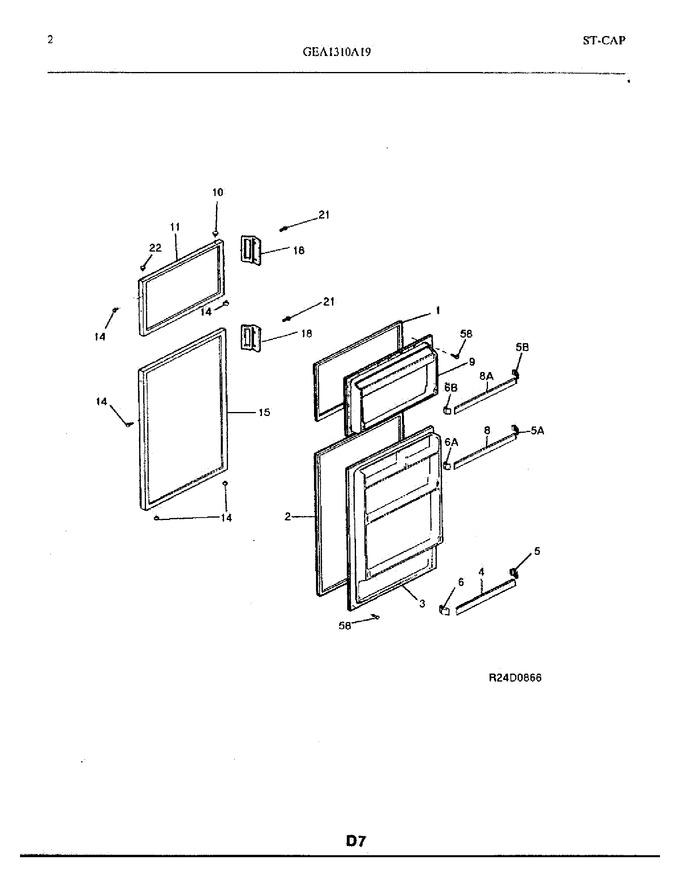

03 - Doors


05 - Cabinet


07 - Shelves


09 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308007123		Gasket-frzr Door, Magnetic				$ 188.54
2	218730603		Gasket-refr Door, Magnetic   (Replaces: 5318680311)				$ 62.07
3	5303209523		Panel-inner Door, Refr		Appelez-nous	-
4	5303272143		Rack-door, Wide, Full Width		Appelez-nous	-
5	3206150		Support, Door Rack, Rh				$ 12.58
6	3206151		Support-door Rack, Lh		Appelez-nous	-
8	5303272150		Rack-door, Frzr		Appelez-nous	-
9	5303209527		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	3916588		Panel-frzr Door, White		Appelez-nous	-
14	240494001		Button Plug, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	3916589		Panel-refr Door, White		Appelez-nous	-
18	5318750101		Handle-door, Plastic, Charcoal Gray		Appelez-nous	-
21	5308013645		Screw-handle Mtg, 8 Cr Truss Hd, 10(d) X 1/2		Appelez-nous	-
22	3206153		Bearing-hinge		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
5A	3206161		Support-door Rack, Rh		Appelez-nous	-
5B	3206165		Support-door Rack, Rh			Immediately	$ 8.19
6A	3206162		Support-door Rack, Lh		Appelez-nous	-
6B	3206166		Support-door Rack, Lh			Immediately	$ 9.93
8A	5303272149		Rack-door, Frzr		Appelez-nous	-
