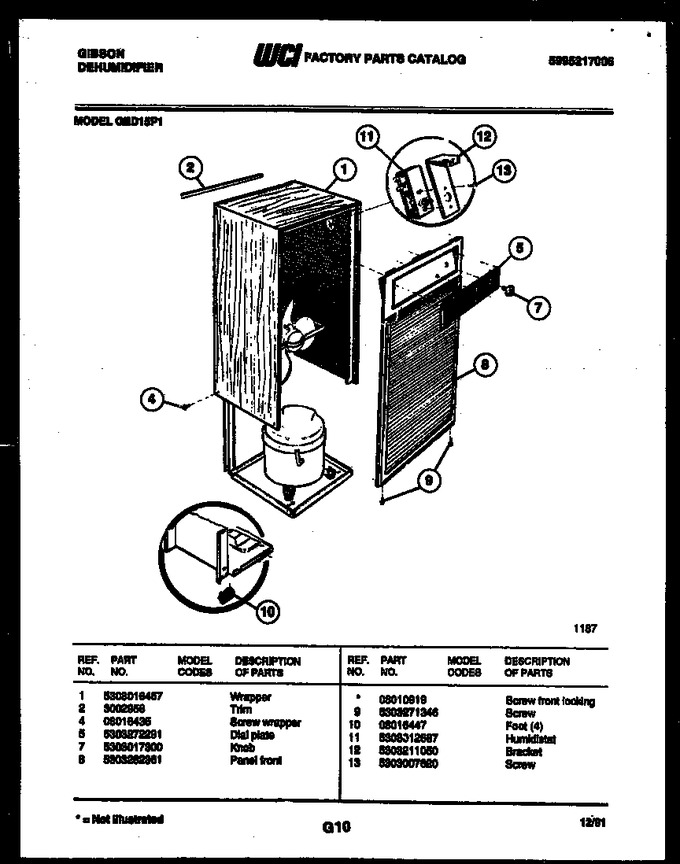

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308016457 | Wrapper |
|
- | |||||
| 2 | 3002958 | Trim |
|
- | |||||
| 4 | 08016435 | Screw Wrapper |
|
- | |||||
| 5 | 5303272291 | Dial Plate |
|
- | |||||
| 7 | 5303017300 | Knob |
|
- | |||||
| 8 | 5303282361 | Panel Front |
|
- | |||||
| 9 | 5303271346 | Screw |
|
- | |||||
| 10 | 08016447 | Foot (4) |
|
- | |||||
| 11 | 5308012687 | Humidistat |
|
- | |||||
| 12 | 5303211050 | Bracket |
|
- | |||||
| 13 | 5303007620 | Screw |
|
$ 9.31 | |||||
| 8A | 08010919 | Screw-front Locking (non-illustrated) |
|
- |
