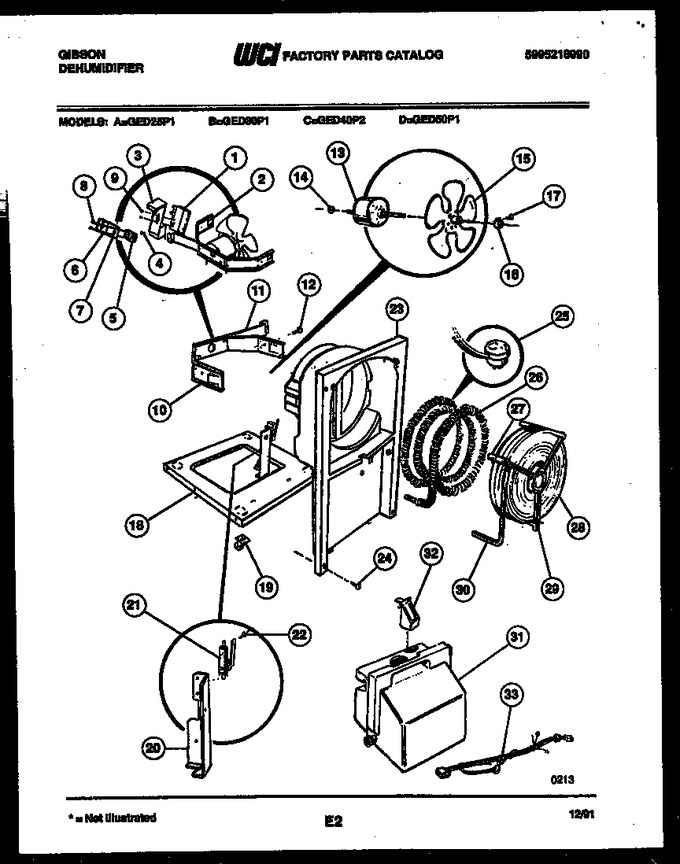

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308012687		Humidistat		Appelez-nous	-
2	5303283906		Guard-terminal		Appelez-nous	-
3	5303211050		Bracket		Appelez-nous	-
4	3001801		Screw		Appelez-nous	-
5	5303012345		Switch				$ 65.94
6	08016541		Bracket		Appelez-nous	-
7	3016093		Support-switch		Appelez-nous	-
8	5303007620		Screw-switch				$ 9.31
9	08016435		Screw-control		Appelez-nous	-
10	5308016449		Bracket-motor		Appelez-nous	-
11	08016540		Bracket-dampener		Appelez-nous	-
12	08016435		Screw		Appelez-nous	-
13	5303279144		Motor-fan		Appelez-nous	-
14	08007481		Nut				$ 5.81
15	5308016448		Fan Blade		Appelez-nous	-
16	08013805		Clamp		Appelez-nous	-
17	5308007473		Screw		Appelez-nous	-
18	5303272812		Base W/ Casters		Appelez-nous	-
19	5303275278		Caster (4)				$ 30.40
20	3016969		Bracket		Appelez-nous	-
21	5308016437		Switch-bucket Shut-off				$ 41.55
22	08007670		Screw		Appelez-nous	-
23	08016450		Shroud		Appelez-nous	-
24	08016435		Screw		Appelez-nous	-
25	5303279149		Thermostat Defrost				$ 171.10
26	3003029		Condenser		Appelez-nous	-
27	08016455		Clamp-evap Inner		Appelez-nous	-
28	3017954		Evaporator		Appelez-nous	-
29	08016454		Clamp-evap Outer		Appelez-nous	-
30	3014462		Capillary Tube, Cut To 25``		Appelez-nous	-
31	5303281288		Bucket W/ Float		Appelez-nous	-
32	5303272520		Float		Appelez-nous	-
33	5303279145		Harness		Appelez-nous	-
