SELECT A DIAGRAM

01 - Cover

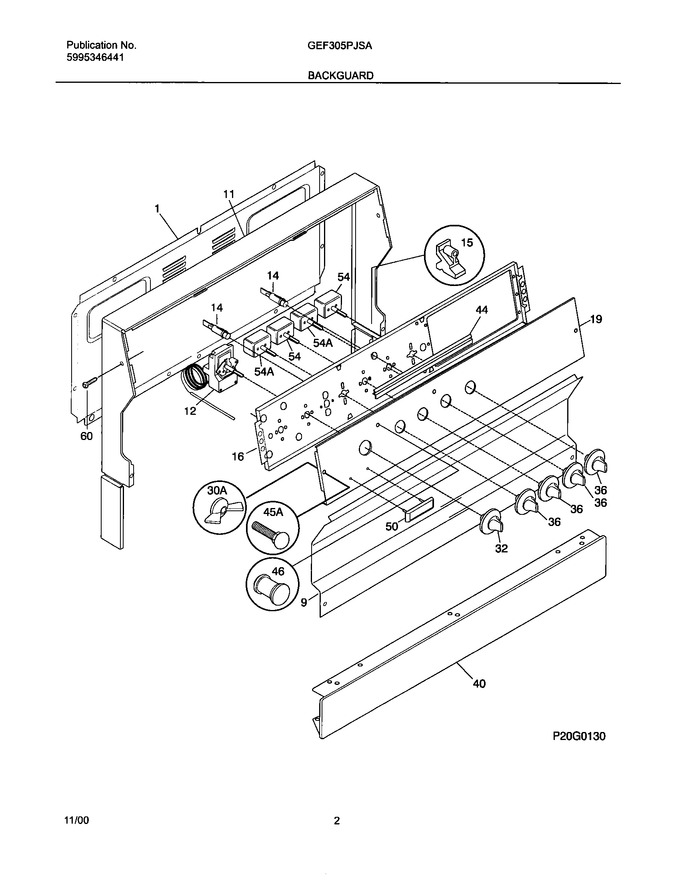

03 - Backguard


05 - Door


07 - Body


09 - Top/drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield-backguard,rear Wall		Appelez-nous	-
9	316133501		Trim-splasher,white ,lower		Appelez-nous	-
11	316057003		Trim,wrapper ,white		Appelez-nous	-
14	3201726		Light/lamp, Indicator, Blue, 250 V		Appelez-nous	-
16	316042602		Plate, Instrument Mtg		Appelez-nous	-
19	316034122		Panel-control, Metal, White		Appelez-nous	-
32	316123300		Knob-thermostat,white		Appelez-nous	-
36	316123304		Knob-infinite Switch, White				$ 89.51
40	316064030		Panel-manifold,white		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
46	316065801		Lens-light/lamp,indicator ,red		Appelez-nous	-
50	316096901		Bezel-nameplate, White				$ 9.82
51	316095403		Nameplate, Gibson, White		Appelez-nous	-
30A	316064300		Nut,nylon		Appelez-nous	-
45A	316056903		Bolt-fastener,nylon ,white		Appelez-nous	-
F12	5303212745		Thermostat-oven		Appelez-nous	-
F54	5303935086		Switch-6`` Element   (Replaces: 5303285142)			Immediately	$ 51.95
F54A	5303285143		Switch, 8`` Element		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303272555		Clip-backguard		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
