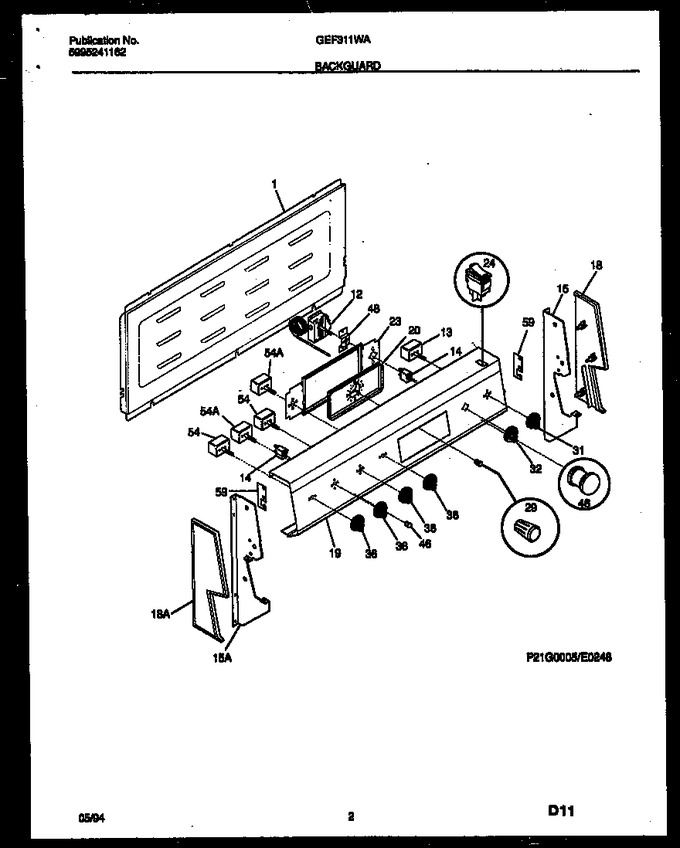

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303017470		Shield-backguard, Rear Wall		Appelez-nous	-
12	5308005306		Thermostat-oven		Appelez-nous	-
13	5308016480		Switch-selector				$ 402.15
14	5303276663		Light / Lamp, Indicator, 250 V, (2)				$ 59.12
15	08012539		Support-backguard Rh		Appelez-nous	-
18	08012554		End Cap, Rh		Appelez-nous	-
19	316055401		Panel-control, Metal		Appelez-nous	-
20	316023803		Clock/timer, Analog 1 Stem		Appelez-nous	-
23	3204642		Bracket-clock Mtg		Appelez-nous	-
24	5303208662		Switch-oven Light, Rocker		Appelez-nous	-
29	3131472		Knob-clock		Appelez-nous	-
31	316019118		Knob-selector		Appelez-nous	-
32	316019116		Knob-thermostat		Appelez-nous	-
36	316019117		Knob-control		Appelez-nous	-
46	316058400		Lens-light / Lamp, Indicator, Amber		Appelez-nous	-
48	08003252		Bracket - Thermostat		Appelez-nous	-
54	5303051540		Switch-6`` Element		Appelez-nous	-
59	5308012538		Bracket-hinge Mtg, Bkgd		Appelez-nous	-
15A	08012540		Support-backguard, Lh		Appelez-nous	-
18A	08012555		End Cap, Lh		Appelez-nous	-
54A	5301313767		Switch-8`` Element		Appelez-nous	-
