SELECT A DIAGRAM

01 - Cover

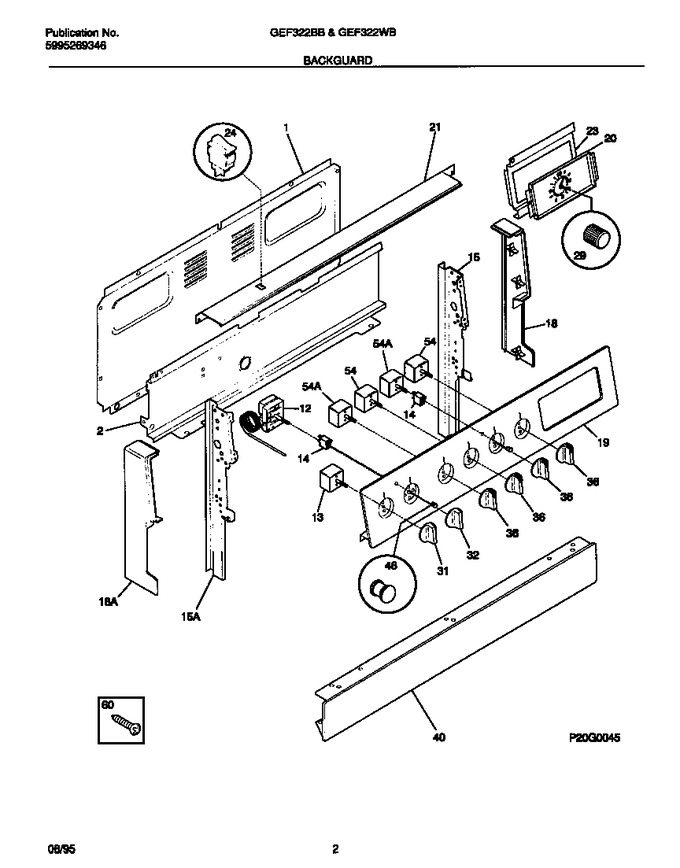

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015907		Shield-backguard, Inner		Appelez-nous	-
12	316032400		Thermostat, Oven, Non Sc		Appelez-nous	-
13	316032500		Switch, Selector		Appelez-nous	-
14	316022503		Light-lamp, Indicator, 250 V			Immediately	$ 70.16
15	316023110		Support-backguard, Rh		Appelez-nous	-
18	316021800		End Cap, Black, Rh				$ 81.32
19	316014731		Panel, Control Metal		Appelez-nous	-
20	316023803		Clock/timer, Analog 1 Stem		Appelez-nous	-
21	316014801		Trim-canopy/shield, Black, Top		Appelez-nous	-
23	316015005		Bracket, Clock Mtg		Appelez-nous	-
24	5308015487		Switch, Oven Light, Rocker Type				$ 61.43
29	316029000		Knob-clock		Appelez-nous	-
31	316071421		Knob, Selector		Appelez-nous	-
32	316071420		Knob, Thermostat		Appelez-nous	-
36	316071422		Knob, Control, Infinite Sw		Appelez-nous	-
40	316062329		Panel, Manifold, Black		Appelez-nous	-
46	316040200		Lens-light/lamp, Indicator, Amber		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
60	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
*67000	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*67001	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*67002	5303292005		Screw-switch Mtg, 8-32 X 3/16, Sw To Cntl Pnl, (8)		Appelez-nous	-
15A	316023111		Support-backguard, Lh		Appelez-nous	-
18A	316021801		End Cap, Black, Lh				$ 94.29
54A	316436001		Switch-8`` Element   (Replaces: 316021501)			Immediately	$ 51.68

    View Diagram in Separate Window       Print Part List
