SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


07 - Wiring Diagram

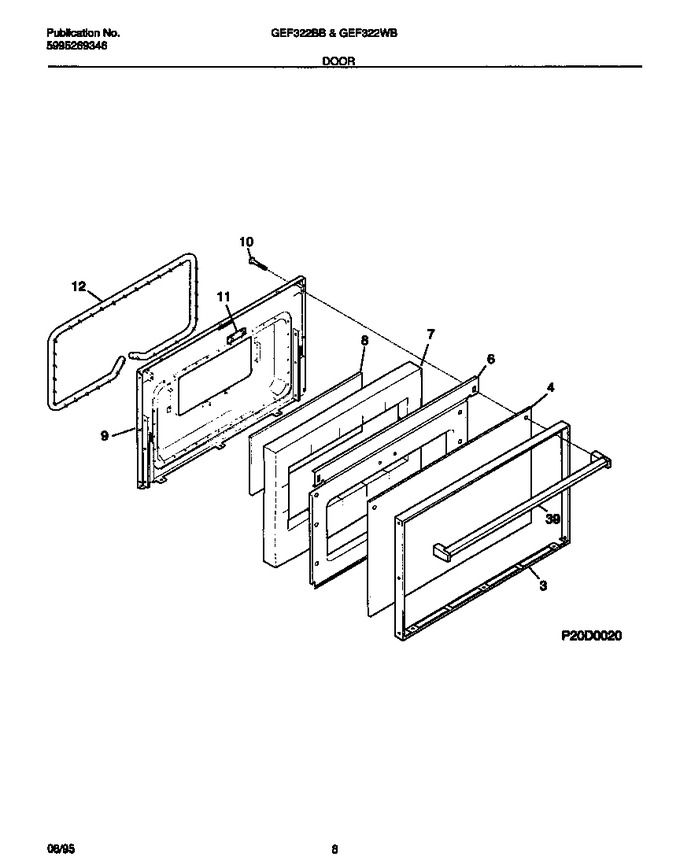

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067802		Trim-oven Door		Appelez-nous	-
4	3051152		Glass-oven Door, Black, Outer		Appelez-nous	-
6	5303210608		Shield-insulation, Black		Appelez-nous	-
7	316439802		Insulation,oven Door   (Replaces: 316076401)			Immediately	$ 192.78
8	316050303		Glass-oven Door, Inner		Appelez-nous	-
9	316066603		Liner-oven Door		Appelez-nous	-
10	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
11	5303015373		Cover-door Liner		Appelez-nous	-
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
39	5303131256		Handle-door, Oven		Appelez-nous	-
*67011	316071600		Plate Warning/caution		Appelez-nous	-
*67012	5303212671		Screw, Cr Pan Hd Sems, 8-32bp X 1.00		Appelez-nous	-
*67013	5303212762		Screw,8-18 X 1/2		Appelez-nous	-
*67014	5303269859		Screw 8-18 X 1/2 Black		Appelez-nous	-
*67015	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46

    View Diagram in Separate Window       Print Part List
