| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
306184 |
|
Plug, Blocking (lpg Regulator) |
00 |
Appelez-nous
|
- |
|
|
|
| 2 |
311640 |
|
Orifice For Main Burner |
00 |
Appelez-nous
|
- |
|
|
|
| 3 |
306205 |
 |
Conversion Kit-nat. To Lpg |
00 |
|
|
$ 68.15 |
|
|
| 4 |
WP694424 |
 |
Leak Limiter (lpg) (Replaces: 314602) |
00 |
|
|
$ 31.11 |
|
|
| 5 |
314603 |
|
Main Burner Orifice-nat |
00 |
Appelez-nous
|
- |
|
|
|
| 6 |
306206 |
|
Conversion Kit-lpg To Nat. |
00 |
Appelez-nous
|
- |
|
|
|
| 7 |
WP90767 |
 |
Screw (Replaces: 211294) |
00 |
|
Immediately |
$ 7.04 |
|
|
| 8 |
Y303369 |
|
Inlet Duct Assembly (dg) |
00 |
Appelez-nous
|
- |
|
|
|
| 9 |
Y312890 |
|
Retainer, Heater Chamber |
00 |
Appelez-nous
|
- |
|
|
|
| 10 |
WP303395 |
 |
Thermostat, Hi-limit (gas) (Replaces: 303395) |
00 |
|
Immediately |
$ 66.35 |
|
|
| 11 |
Y303368 |
|
Cone, Combustion |
00 |
Appelez-nous
|
- |
|
|
|
| 12 |
WP338906 |
 |
Sensor, Radiant (Replaces: Y303377) |
00 |
|
Immediately |
$ 46.72 |
|
|
| 13 |
314509 |
|
Combustion Cone Extension |
00 |
Appelez-nous
|
- |
|
|
|
| 14 |
58804A |
 |
Coil, Holding & Booster (Replaces: 306106) |
00 |
|
Immediately |
$ 28.02 |
|
|
| 15 |
279834 |
 |
Coil, Secondary (Replaces: 306105) |
00 |
|
Immediately |
$ 29.57 |
|
|
| 16 |
306084 |
|
Valve, Gas |
00 |
Appelez-nous
|
- |
|
|
|
| 17 |
311641 |
|
Orifice For Main Burner |
00 |
Appelez-nous
|
- |
|
|
|
| 17 |
314603 |
|
Main Burner Orifice-nat |
00 |
Appelez-nous
|
- |
|
|
|
| 17 |
311640 |
|
Orifice For Main Burner |
00 |
Appelez-nous
|
- |
|
|
|
| 18 |
314508 |
|
Bracket For Gas Valve |
00 |
Appelez-nous
|
- |
|
|
|
| 19 |
306162 |
|
Burner Assembly With Screw |
00 |
Appelez-nous
|
- |
|
|
|
| 20 |
WP90767 |
|
Screw-gas Valve To Bracket (Replaces: 314568) |
00 |
|
Immediately |
$ 7.04 |
|
|
| 21 |
304971 |
|
Screw |
00 |
Appelez-nous
|
- |
|
|
|
| 22 |
304971 |
|
Screw |
00 |
Appelez-nous
|
- |
|
|
|
| 23 |
WP90767 |
|
Screw (Replaces: 212276) |
00 |
|
Immediately |
$ 7.04 |
|
|
| 24 |
WP90767 |
|
Screw (Replaces: 314082) |
00 |
|
Immediately |
$ 7.04 |
|
|
| 25 |
Y313262 |
|
Retainer, Wire Harness |
00 |
Appelez-nous
|
- |
|
|
|
| 26 |
310454 |
|
Manifold, 2 Inch |
00 |
Appelez-nous
|
- |
|
|
|
| 27 |
306086 |
|
Angle Shut Off For Gas Valv |
00 |
Appelez-nous
|
- |
|
|
|
| 28 |
306090 |
|
Wire Harness For Gas Valve |
00 |
|
|
$ 36.71 |
|
|

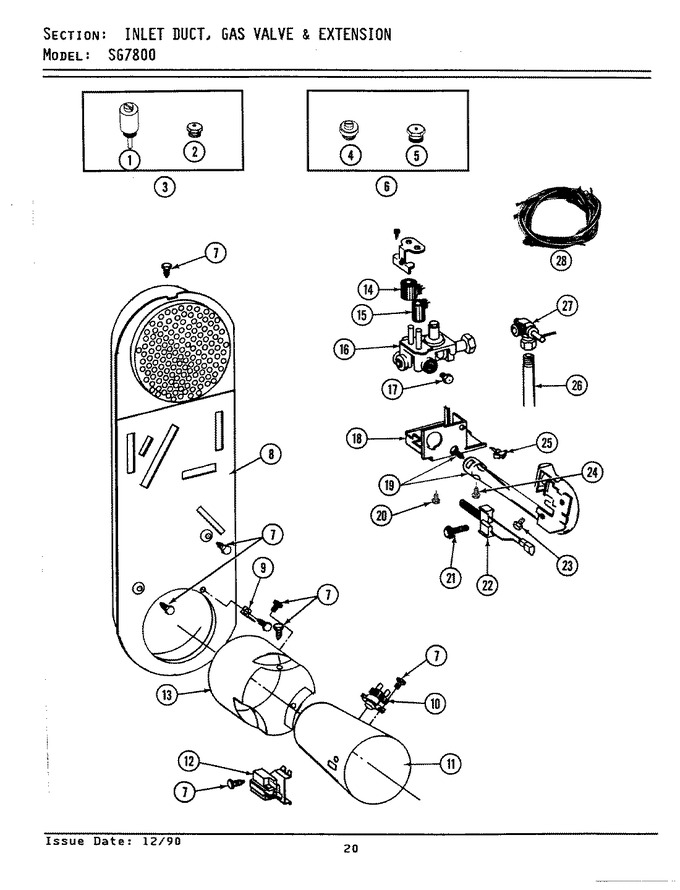

View Diagram in Separate Window
