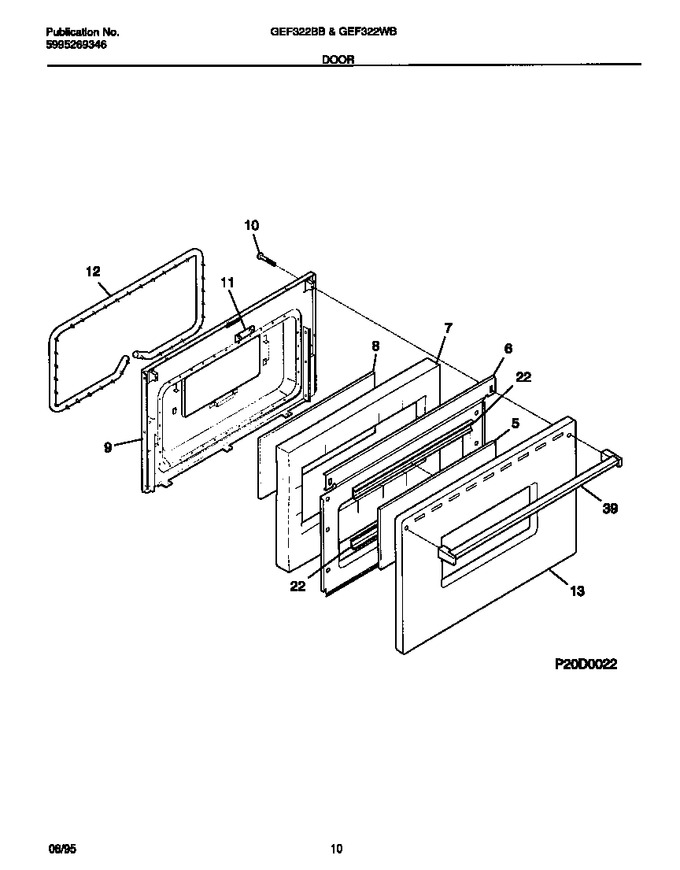

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


06 - Door


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	3051149		Glass, Oven Door, Front		Appelez-nous	-
6	5303210608		Shield-insulation, Black		Appelez-nous	-
7	316439802		Insulation,oven Door   (Replaces: 316076401)			Immediately	$ 192.78
8	316050303		Glass-oven Door, Inner		Appelez-nous	-
9	316066603		Liner-oven Door		Appelez-nous	-
10	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
11	5303015373		Cover-door Liner		Appelez-nous	-
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
13	3017096		Panel, Oven Door, Almond		Appelez-nous	-
22	5303272476		Retainer,glass ,(2) ,angle		Appelez-nous	-
39	5303131256		Handle-door, Oven		Appelez-nous	-
*67016	3051305		Spacer, Handle, (2)		Appelez-nous	-
*67017	316071600		Plate Warning/caution		Appelez-nous	-
*67018	5303212671		Screw, Cr Pan Hd Sems, 8-32bp X 1.00		Appelez-nous	-
*67019	5303212762		Screw,8-18 X 1/2		Appelez-nous	-
*67020	5303269859		Screw 8-18 X 1/2 Black		Appelez-nous	-
*67021	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*67022	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*67023	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46
*67024	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
