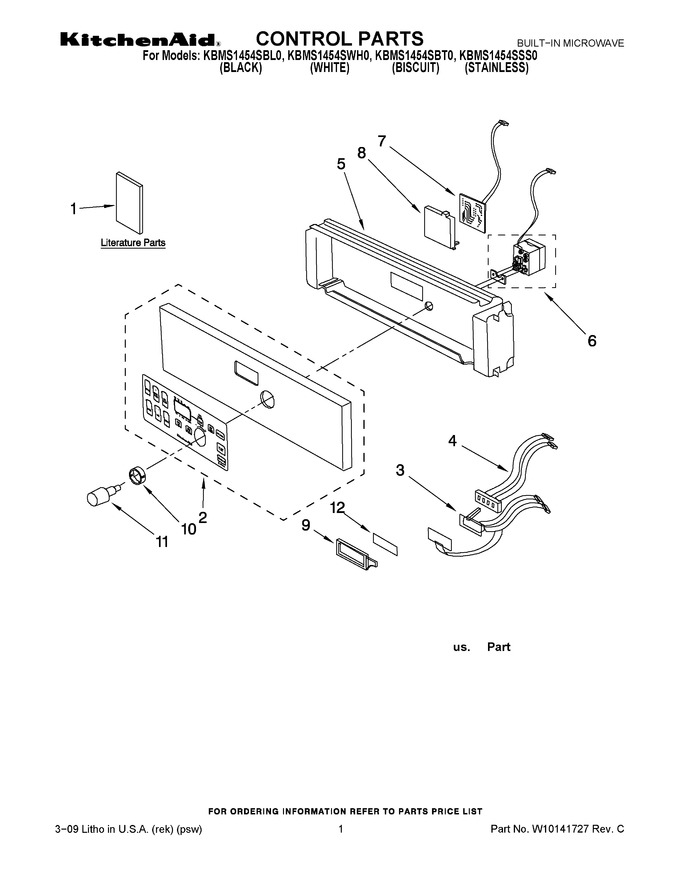

01 - Control Parts


02 - Cabinet Parts


03 - Door Parts


04 - Top Venting Parts


05 - Oven Interior Parts


06 - Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8205302		Guide-quick Reference		Appelez-nous	-
1	8205301		Use & Care Guide		Appelez-nous	-
1	W10141643		Cook Guide Label		Appelez-nous	-
1	8205304		Tech Sheet		Appelez-nous	-
1	W10111676		Installation Instructions		Appelez-nous	-
2	W10141637		Panel, Control (stainless)		Appelez-nous	-
2	W10141638		Panel, Control (white)		Appelez-nous	-
2	W10141639		Panel, Control (black)		Appelez-nous	-
2	W10141640		Panel, Control (biscuit)		Appelez-nous	-
3	WPW10203481		Touch, Foil   (Replaces: W10203481)				$ 227.52
4	WPW10124269		Board, Display   (Replaces: W10124269)				$ 157.21
5	8205722		Support, Control Panel		Appelez-nous	-
6	8205662		Board, Selector		Appelez-nous	-
7	8206313		Board, Interface		Appelez-nous	-
8	W10884489		Holder, Control Board   (Replaces: 8205739)				$ 66.02
9	461967750153		Holder, Display Board   (Replaces: 8205657)				$ 70.79
10	461960204731		Ring, Knob   (Replaces: W10170864)				$ 59.99
11	W10170865		Knob		Appelez-nous	-
12	W10141641		Window (display Filter)		Appelez-nous	-
