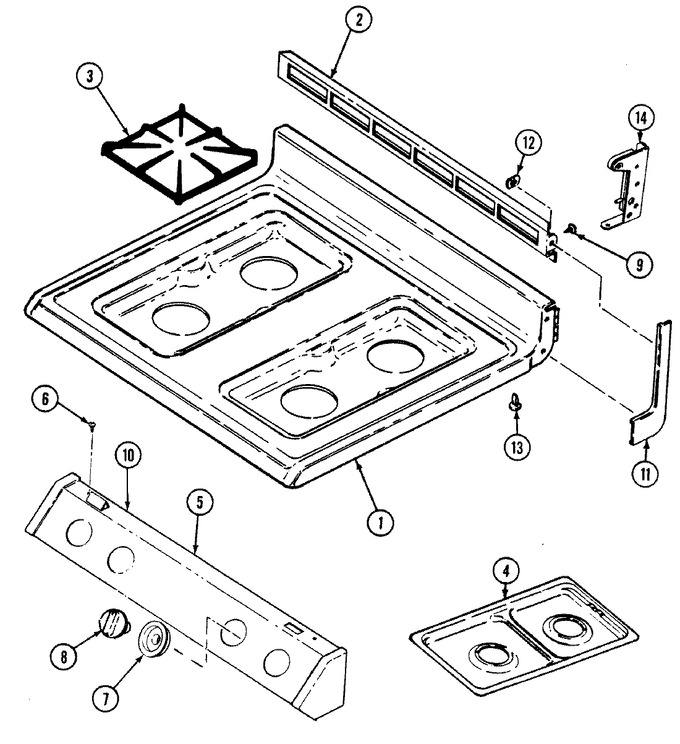

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Oven
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2001W082-81 | Top, Main (wht) |
|
- | |||||
| 2 | 3608F042-09 | Trim, Vent (blk) |
|
- | |||||
| 3 | 2003W027-00 | Grate (blk) |
|
- | |||||
| 3 | 2003W023-00 | Grate (blk) |
|
- | |||||
| 4 | 7725P021-60 | Bowl, Drip (dbl-chr) |
|
$ 32.25 | |||||
| 5 | 7712P135-60 | Panel, Manifold (blk) |
|
- | |||||
| 5 | 7101P291-60 | Screw |
|
- | |||||
| 6 | W11233072 | Screw, Housing (Replaces: 7118P015-60) |
|
Immediately | $ 12.62 | ||||
| 7 | 7740P058-60 | Bezel, Knob (blk) |
|
$ 24.44 | |||||
| 8 | WP7711P135-60 | Knob, Valve (blk) (Replaces: 7733P027-60) |
|
$ 25.06 | |||||
| 9 | 7101P208-60 | Screw (10abx1/4p Tr Zn) |
|
$ 11.92 | |||||
| 10 | 7112P087-60 | Clip, Top Locking |
|
- | |||||
| 11 | 7746P030-60 | End Cap (rt-blk) |
|
$ 26.16 | |||||
| 11 | 8270P095-60 | Tape, Double Sided |
|
- | |||||
| 11 | 7746P031-60 | End Cap (lt-blk) |
|
$ 26.25 | |||||
| 12 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) |
|
$ 7.68 | |||||
| 13 | 8016P013-60 | Glide |
|
- | |||||
| 14 | 8114P348-60 | Cover, Hinge Support |
|
- | |||||
| 14 | 3807F424-51 | Support, Housing (lt) |
|
- | |||||
| 14 | 3807F423-51 | Support, Housing (rt) |
|
- |
