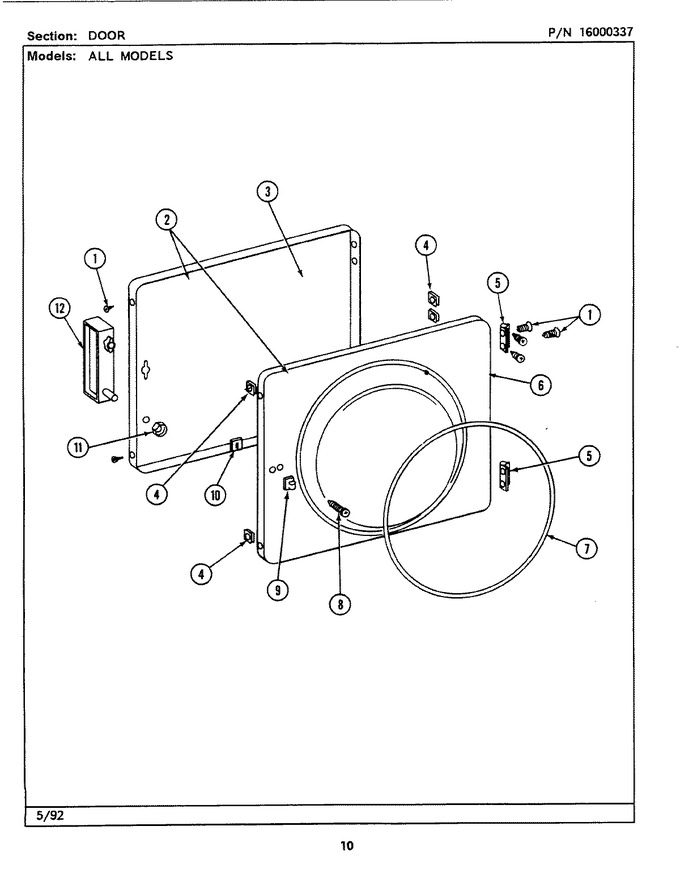

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y314062		Screw	A5			$ 12.03
2	306669L		Door, S1000 Almond	A5	Appelez-nous	-
3	314475L		Panel, Outer Door (alm)	A5	Appelez-nous	-
4	Y313910		Clip, Door Liner To Outer Pnl	A5	Appelez-nous	-
5	Y304577		Door Hinge	A5	Appelez-nous	-
6	33001002		Door, Inner (w/gasket)	A5	Appelez-nous	-
7	314077		Door Seal	A5	Appelez-nous	-
8	W11233072		Screw - Inlet Duct   (Replaces: 312960)	A5		Immediately	$ 12.62
9	306436		Door Latch Kit	A5		Immediately	$ 10.17
10	Y313911		Door Strike Retainer	A5			$ 4.83
11	214872		Palnut, End Cap	A5	Appelez-nous	-
12	314476		Handle,door	A5	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
