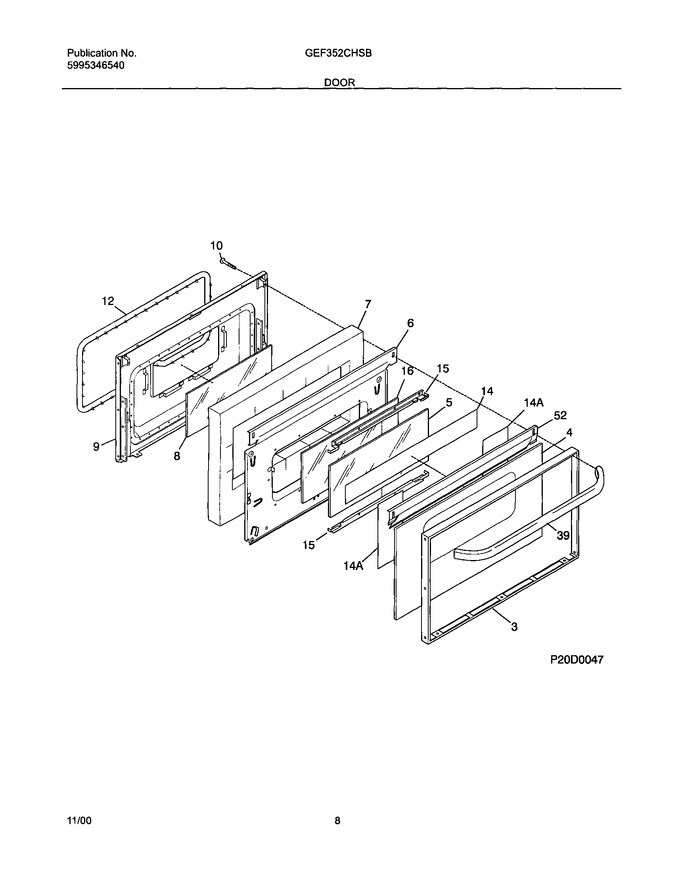

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067804		Trim-oven Door, White		Appelez-nous	-
4	316089005		Glass-oven Door, White, Outer		Appelez-nous	-
5	316088700		Glass,oven Door ,airwash				$ 70.17
6	316088401		Shield-wool		Appelez-nous	-
7	316076403		Insulation-door		Appelez-nous	-
8	316088600		Glass,oven Door ,inner				$ 85.52
9	316066610		Liner-oven Door		Appelez-nous	-
10	5303280308		Screw-handle Mtg,wafer Hd Sq Dr ,10-24t X 2.00				$ 16.96
14	3131361		Reflector, Aluminum Foil		Appelez-nous	-
15	316081403		Bracket,glass Mtg		Appelez-nous	-
16	316085701		Glass,oven Door ,heat Barrier				$ 131.41
39	5304530039		Handle-door, White, Oven   (Replaces: 316091115)			Immediately	$ 167.43
52	316081301		Shield-oven Door, White, Top				$ 85.94
14A	3131360		Reflector, Aluminum Foil (2)		Appelez-nous	-
F12	5303131601		Seal-oven Door				$ 374.63
NI	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
NI	316065306		Plate Warning/caution		Appelez-nous	-
NI	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
NI	316132100		Spacer,sponge Pad		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.500 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.500 ,white   (Replaces: 316021112)			Immediately	$ 27.50
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.500 ,burner Box			Immediately	$ 13.46
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312 ,(2)				$ 6.62
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46

    View Diagram in Separate Window       Print Part List
