SELECT A DIAGRAM

02 - Backguard


03 - Body


04 - Top/drawer

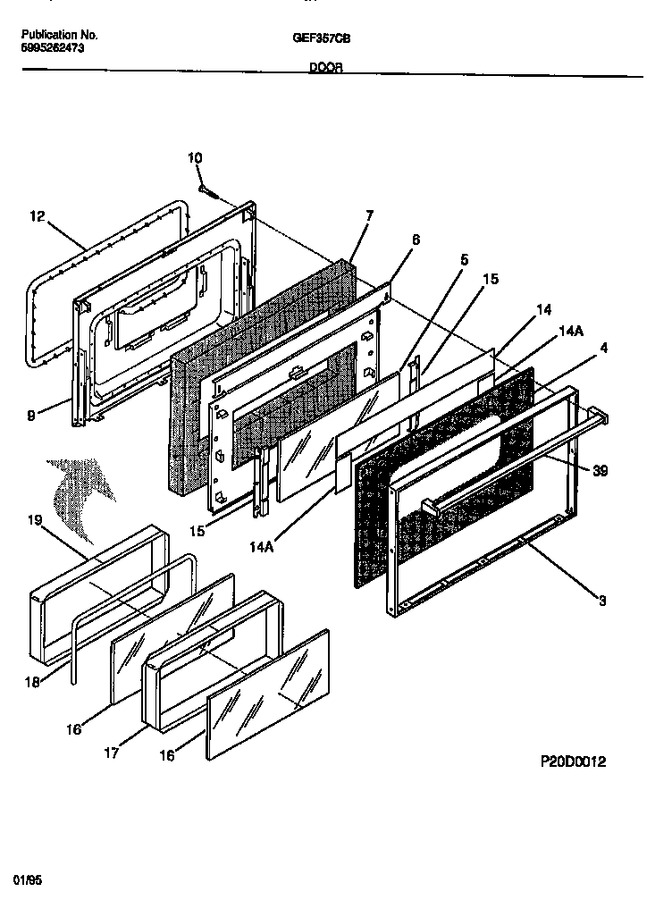

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067804		Trim-oven Door, White		Appelez-nous	-
4	316019718		Glass-oven Door, White		Appelez-nous	-
5	5303209513		Glass-oven Door, Inner		Appelez-nous	-
6	5303271181		Shield-insulation, White		Appelez-nous	-
7	5303209514		Insulation-oven Door		Appelez-nous	-
9	316066603		Liner-oven Door		Appelez-nous	-
10	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
12	5303131601		Seal-oven Door				$ 374.63
14	3131361		Reflector, Aluminum Foil		Appelez-nous	-
15	5303209510		Bracket-glass Mtg		Appelez-nous	-
16	5303209512		Glass-oven Door, Heat Barrier, (2)				$ 150.41
17	5303209517		Spacer-glass		Appelez-nous	-
18	5303288567		Screw, 8, 18 X 3/8, (4) (ni)		Appelez-nous	-
18	5303211085		Seal-rope, 0.25 Dia				$ 44.00
19	316067600		Collar-glass Mtg		Appelez-nous	-
39	316060300		Handle, Door, White, Oven		Appelez-nous	-
*28009	3203618		Rivet-pop, Waring-plate		Appelez-nous	-
*28010	316065300		Plate Warning/caution		Appelez-nous	-
*28011	5303212671		Screw, Cr Pan Hd Sems, 8, 32(bp) X 1		Appelez-nous	-
*28012	5303212762		Screw,8-18 X 1/2		Appelez-nous	-
14A	3131360		Reflector, Aluminum Foil		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
