SELECT A DIAGRAM
01 - Cover

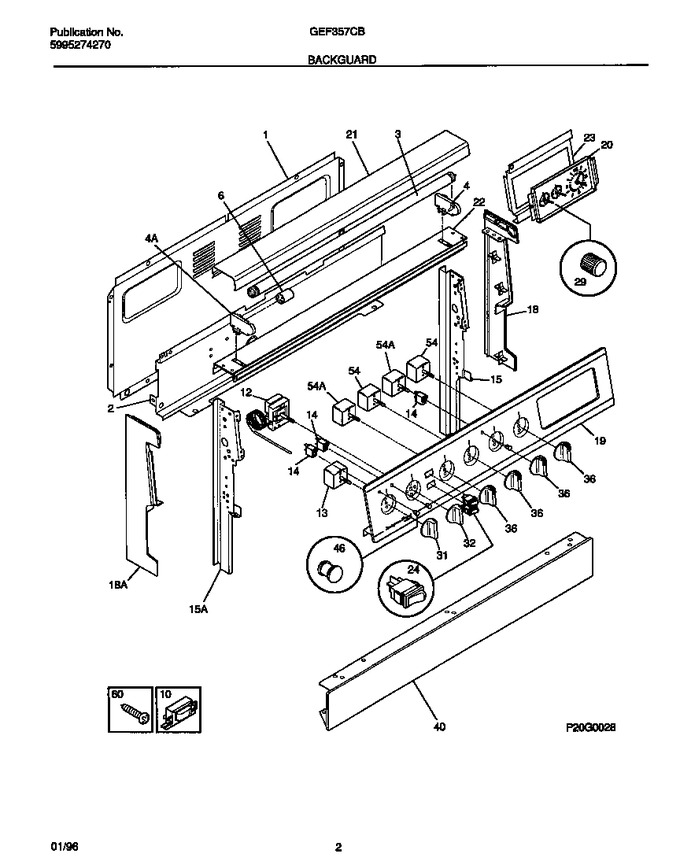

02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316081601 | Shield-backguard, Rear Wall |
|
- | |||||
| 2 | 316015905 | Shield-backguard, Inner |
|
- | |||||
| 3 | 3131275 | Lamp-fluorescent, Backguard |
|
$ 49.40 | |||||
| 4 | 316008200 | Receptacle-lamp, Rh |
|
- | |||||
| 4 | 316008201 | Receptacle-lamp, Lh |
|
- | |||||
| 6 | 3206218 | Starter-lamp |
|
$ 54.08 | |||||
| 10 | 5303051115 | Ballast-lamp |
|
- | |||||
| 12 | 316021400 | Thermostat-oven |
|
- | |||||
| 13 | 316023200 | Switch-selector |
|
$ 176.44 | |||||
| 15 | 316023111 | Support-backguard, Lh |
|
- | |||||
| 15 | 316023110 | Support-backguard, Rh |
|
- | |||||
| 18 | 316015407 | End Cap, White, Lh |
|
$ 101.85 | |||||
| 18 | 316015406 | End Cap, White, Rh |
|
- | |||||
| 19 | 316014734 | Panel, Control, Metal |
|
- | |||||
| 20 | 316017416 | Clock/timer, Analog 3 Stem |
|
- | |||||
| 21 | 316015303 | Trim, Backguard, White, Top |
|
- | |||||
| 22 | 316015500 | Support, Receptacle |
|
- | |||||
| 23 | 316015005 | Bracket, Clock Mtg |
|
- | |||||
| 24 | 5304527842 | Switch-rocker, White (Replaces: 316005607) |
|
Immediately | $ 16.13 | ||||
| 29 | 316029003 | Knob-clock, White |
|
- | |||||
| 31 | 316071428 | Knob, Selector |
|
- | |||||
| 32 | 316071427 | Knob, Thermostat |
|
- | |||||
| 36 | 316071423 | Knob, Control, White |
|
- | |||||
| 40 | 316062330 | Panel, Manifold |
|
- | |||||
| 54 | 5303935086 | Switch-6`` Element (Replaces: 316021500) |
|
Immediately | $ 51.95 | ||||
| 54 | 316436001 | Switch-8`` Element (Replaces: 316021501) |
|
Immediately | $ 51.68 | ||||
| 60 | 316021109 | Screw,hex, 8-18 X 3/8, Back\bodyside (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| *56160 | 5303292005 | Screw-switch Mtg, 8-32 X 5/32, (2) |
|
- | |||||
| *56161 | 5303281584 | Screw, Truss Head, 8-18 X 1/2 |
|
- | |||||
| *56162 | 5303288574 | Screw, Truss Head, 8-10 X 3/8 |
|
- | |||||
| 14A | 316034800 | Light/lamp, Ind, Hot Surface |
|
- | |||||
| 14B | 316022503 | Light-lamp, Indicator, 250 V |
|
Immediately | $ 70.16 | ||||
| 46A | 316040200 | Lens-light/lamp, Indicator, Amber |
|
- | |||||
| 46B | 316035700 | Lens-light/lamp, Indicator (not Illustrated) |
|
- |
