| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
22003428 |
 |
Leg, Adjustable (w/nut) (Replaces: Y302699) |
A3 |
|
Immediately |
$ 14.41 |
|
|
| 2 |
22001172 |
|
Base (w/damper Pads) |
A3 |
Appelez-nous
|
- |
|
|
|
| 3 |
Y015627 |
|
Screw, Hex Hd Cap 5/16 X 5/8 |
A3 |
|
|
$ 8.15 |
|
|
| 4 |
W10175939 |
 |
Bolt & Gasket Assy.(short) (Replaces: 200744) |
A3 |
|
|
$ 7.79 |
|
|
| 4 |
W10175938 |
 |
Bolt & Gasket Assembly (long) (Replaces: 205254) |
A3 |
|
Immediately |
$ 7.00 |
|
|
| 5 |
213053 |
|
Brace, Tub |
A3 |
Appelez-nous
|
- |
|
|
|
| 6 |
22001300 |
|
Spring, Centering |
A3 |
|
|
$ 5.83 |
|
|
| 7 |
1N4004 |
|
Damper W/bolt & Clip (Replaces: 203725) |
A3 |
Appelez-nous
|
- |
|
|
|
| 8 |
203956 |
 |
Damper Pad Kit (w/poly Lube) |
A3 |
|
Immediately |
$ 47.33 |
|
|
| 9 |
213073 |
|
Washer, Double |
A3 |
Appelez-nous
|
- |
|
|
|
| 10 |
WP22001448 |
 |
Hose (Replaces: 215365) |
A3 |
|
|
$ 79.87 |
|
|
| 11 |
W11129403 |
 |
Bolt, Eye/centering Spring (Replaces: 216416) |
A3 |
|
|
$ 12.23 |
|
|
| 13 |
WP213045 |
 |
Drain Hose-tub To Pump (Replaces: 213045) |
A3 |
|
Immediately |
$ 43.57 |
|
|
| 14 |
WP3367052 |
 |
Clamp, Hose (Replaces: 202574) |
A3 |
|
|
$ 7.49 |
|
|
| 15 |
WP3367052 |
|
Clamp, Hose (Replaces: 202574) |
A3 |
|
|
$ 7.49 |
|
|
| 16 |
WP3400029 |
 |
Nut, Washered Lock (Replaces: Y311426) |
A3 |
|
Immediately |
$ 6.98 |
|
|
| 17 |
22001301 |
|
Mount, Motor Lower-assembly |
A3 |
Appelez-nous
|
- |
|
|
|
| 18 |
200816 |
|
Pulley, Motor (w/set Screw) |
A3 |
Appelez-nous
|
- |
|
|
|
| 19 |
12002351 |
 |
Motor (one Speed) (Replaces: 201805) |
A3 |
|
Immediately |
$ 170.98 |
|
|
| 20 |
211028 |
|
Deflector,water (drive Tube) |
A3 |
Appelez-nous
|
- |
|
|
|
| 21 |
911852 |
|
Washer, Lock (brace) |
A3 |
Appelez-nous
|
- |
|
|
|
| 22 |
206505 |
|
Switch, Motor Start |
A3 |
Appelez-nous
|
- |
|
|
|
| 22 |
205132 |
|
Switch, Motor Start |
A3 |
Appelez-nous
|
- |
|
|
|
| 23 |
215098 |
|
Shield, Motor |
A3 |
Appelez-nous
|
- |
|
|
|
| 24 |
Y052734 |
|
Nut |
A3 |
Appelez-nous
|
- |
|
|
|
| 25 |
Y052785 |
|
Nut,brace To Damper |
A3 |
Appelez-nous
|
- |
|
|
|
| 26 |
WP210385 |
 |
Nut, Lock (Replaces: 210385) |
A3 |
|
|
$ 6.26 |
|
|
| 27 |
WP211949 |
 |
Nut, Eyebolt (Replaces: 211949) |
A3 |
|
|
$ 6.88 |
|
|
| 28 |
202203 |
|
Pump As Pak |
A3 |
Appelez-nous
|
- |
|
|
|
| 29 |
205000 |
 |
Glide Kit (4 W/poly Lube) (Replaces: 204998) |
A3 |
|
|
$ 62.00 |
|
|
| 30 |
212979 |
 |
Washer, Tub Brace |
A3 |
|
|
$ 91.61 |
|
|
| 31 |
WP210684 |
 |
Foot, Rubber (Replaces: 210684) |
A3 |
|
Immediately |
$ 14.09 |
|
|
| 32 |
WP3390631 |
 |
Screw, Bearing Insert (Replaces: Y015408) |
A3 |
|
|
$ 7.04 |
|
|
| 33 |
WP489128 |
 |
Screw (Replaces: 912365) |
A3 |
|
|
$ 9.79 |
|
|
| 34 |
WPY014874 |
 |
Screw, Hex Hd No.10 X 1/2 Inc (Replaces: 211880) |
A3 |
|
|
$ 6.98 |
|
|
| 35 |
WPW10346892 |
 |
Screw (Replaces: 213121) |
A3 |
|
Immediately |
$ 6.47 |
|
|
| 36 |
Y053241 |
|
Set Screw, Pulley |
A3 |
Appelez-nous
|
- |
|
|
|
| 37 |
205000 |
|
Glide & Spring Kit |
A3 |
|
|
$ 62.00 |
|
|
| 38 |
206707 |
|
Transmission, Orbital |
A3 |
Appelez-nous
|
- |
|
|
|
| 39 |
214956 |
|
Mount, Motor/upper |
A3 |
Appelez-nous
|
- |
|
|
|
| 40 |
Y054867 |
|
Washer, Lock |
A3 |
Appelez-nous
|
- |
|
|
|
| 41 |
211100 |
|
Washer, Cushion |
A3 |
Appelez-nous
|
- |
|
|
|
| 42 |
315471 |
|
Retainer, Wire |
A3 |
Appelez-nous
|
- |
|
|
|

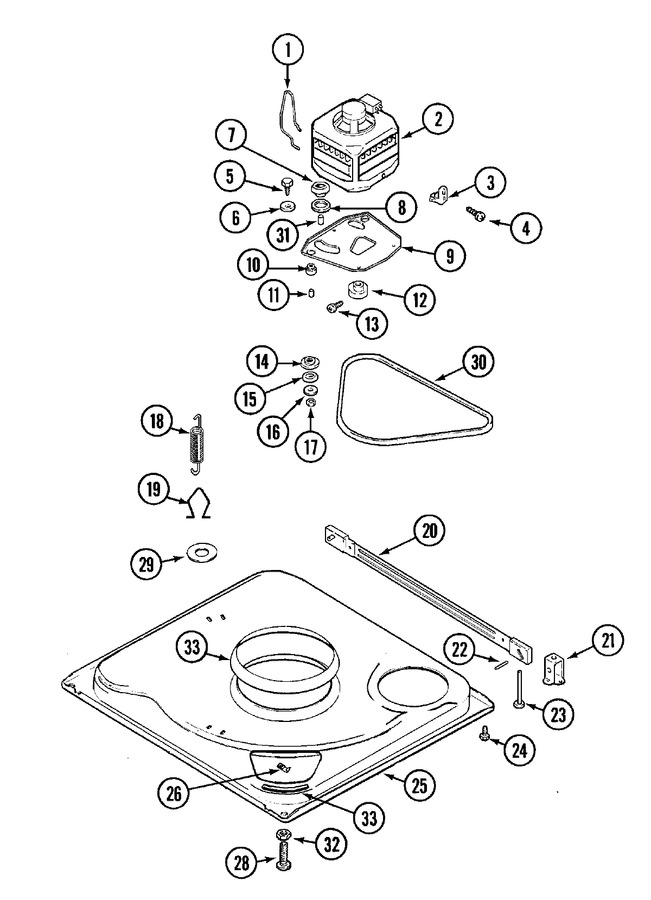

View Diagram in Separate Window
