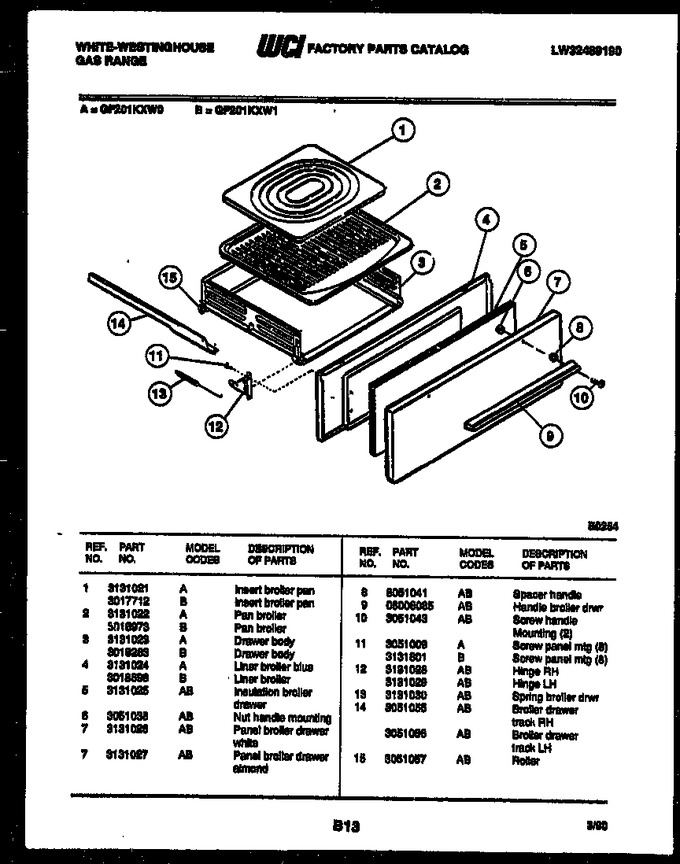

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3017712		Insert-broiler Pan		Appelez-nous	-
2	3016973		Pan-broiler		Appelez-nous	-
3	3018283		Drawer Body		Appelez-nous	-
4	3018698		Liner - Broiler		Appelez-nous	-
5	3131025		Insulation Broiler Drawer		Appelez-nous	-
6	3051038		Nut Handle Mounting		Appelez-nous	-
7	3131027		Panel-broiler Drawer (almond)		Appelez-nous	-
8	3051041		Spacer-handle		Appelez-nous	-
9	08008085		Handle Broiler Drwr		Appelez-nous	-
10	3051043		Screw Handle Mounting (2)		Appelez-nous	-
11	3131801		Screw Panel Mtg (8)		Appelez-nous	-
12	3131028		Hinge - Rh		Appelez-nous	-
13	3131030		Spring - Broiler Drwr		Appelez-nous	-
14	3051055		Broiler-drawer Track Rh		Appelez-nous	-
15	3051057		Roller		Appelez-nous	-
12A	3131029		Hinge - Lh		Appelez-nous	-
14A	3051056		Broiler-drawer Track Lh		Appelez-nous	-
