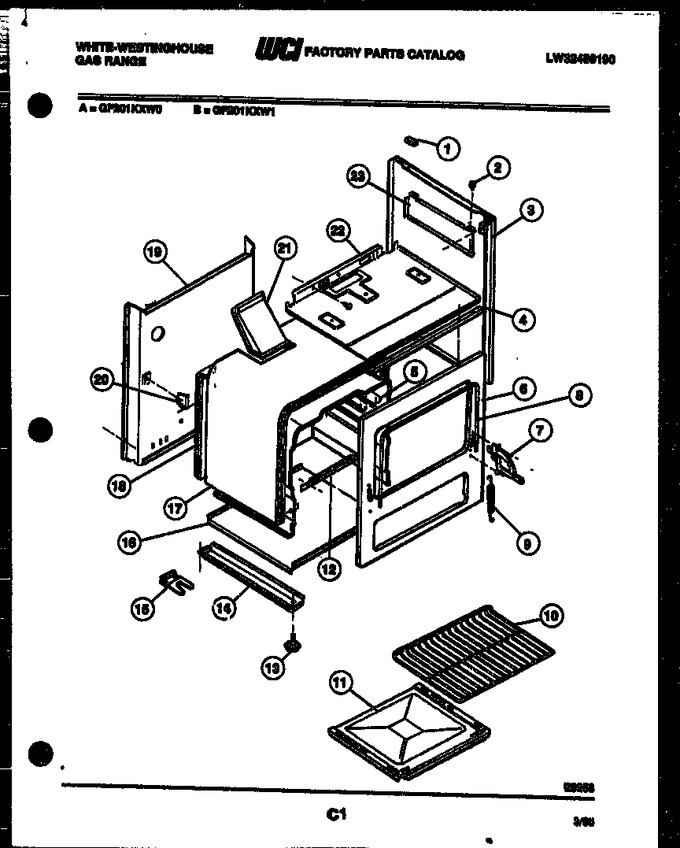

02 - Backguard And Cooktop Parts


03 - Door Parts


04 - Broiler Drawer Parts


05 - Burner, Manifold And Gas Control


06 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3016129		Grommet Main Top		Appelez-nous	-
2	3051063		Grommet		Appelez-nous	-
3	3051061		Bodyside White Lh & Rh		Appelez-nous	-
4	3051067		Support-control Pnl		Appelez-nous	-
5	3131032		Oven Liner-side Rh		Appelez-nous	-
6	3051068		Front Frame		Appelez-nous	-
7	A096067000		Hinge Door Lh		Appelez-nous	-
8	3051069		Seal - Oven Door		Appelez-nous	-
9	3051079		Spring Hinge Lh/rh		Appelez-nous	-
10	3016158		Rack-oven		Appelez-nous	-
11	3131037		Oven-bottom		Appelez-nous	-
12	3131038		Support-oven Bottom		Appelez-nous	-
13	3051080		Leveling Leg		Appelez-nous	-
14	08068047		Rail Base Lh/rh		Appelez-nous	-
15	3131041		Bracket-installation		Appelez-nous	-
16	3131042		Main Bottom		Appelez-nous	-
17	3131043		Insulation-wrap		Appelez-nous	-
18	3131044		Insulation-back		Appelez-nous	-
19	3131045		Back-main		Appelez-nous	-
20	3051096		Support,oven Rear		Appelez-nous	-
21	3017173		Vent Box		Appelez-nous	-
22	3017573		Burner Box		Appelez-nous	-
23	3131054		Shield Heat B/b Lh		Appelez-nous	-
23	3131053		Shield Heat B/b Rh		Appelez-nous	-
*80709	3009582		Clip Backsplash Corner		Appelez-nous	-
5A	3131033		Oven Liner-side Lh		Appelez-nous	-
5B	3017445		Oven Liner Top		Appelez-nous	-
5C	3131035		Oven Liner-back		Appelez-nous	-
7A	A096068000		Hinge Door Rh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
