02 - Backguard And Cooktop Parts


03 - Broiler Drawer Parts


04 - Door Parts


05 - Burner, Manifold And Gas Control


06 - Body Parts

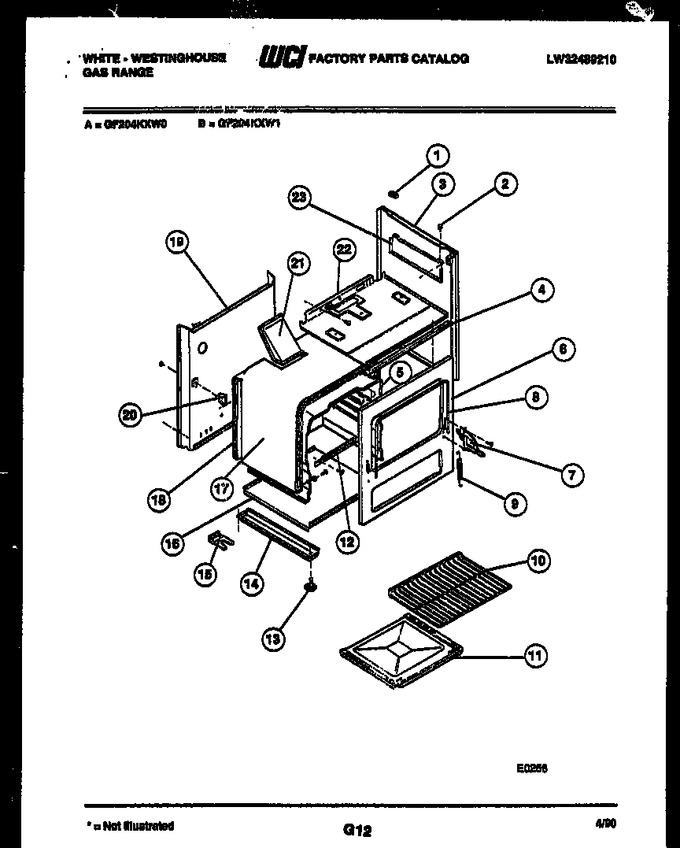

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3016129		Grommet Main Top		Appelez-nous	-
2	3051063		Grommet		Appelez-nous	-
3	3051061		Panel Bodyside Lh & Rh White		Appelez-nous	-
4	3016950		Support-control Pnl		Appelez-nous	-
5	3131032		Oven Liner-side Rh		Appelez-nous	-
6	3016942		Front Frame		Appelez-nous	-
7	3204672		Hinge - Door Lh		Appelez-nous	-
8	3009426		Seal Oven Door		Appelez-nous	-
9	3051079		Spring Hinge Lh/rh		Appelez-nous	-
10	3016128		Rack Oven		Appelez-nous	-
11	3017447		Oven Bottom		Appelez-nous	-
12	3131038		Support-oven Bottom		Appelez-nous	-
13	3051080		Leveling Leg		Appelez-nous	-
14	08068047		Rail Base Lh/rh		Appelez-nous	-
15	3131041		Bracket-installation		Appelez-nous	-
16	3017448		Main Bottom		Appelez-nous	-
17	3017171		Insulation - Wrap		Appelez-nous	-
18	3017172		Insulation-back & Top		Appelez-nous	-
19	3017449		Back-main		Appelez-nous	-
20	3051096		Support,oven Rear		Appelez-nous	-
21	3017173		Vent Box		Appelez-nous	-
22	3017450		Burner Box		Appelez-nous	-
23	3131053		Shield Heat Bib Rh		Appelez-nous	-
*77598	3009582		Clip Backsplash Corner		Appelez-nous	-
23A	3131054		Shield Heat Bib Lh		Appelez-nous	-
5A	3131033		Oven Liner-side Lh		Appelez-nous	-
5B	3017445		Oven Liner Top		Appelez-nous	-
5C	3017446		Oven Liner Back		Appelez-nous	-
7A	3204670		Hinge - Door Rh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
