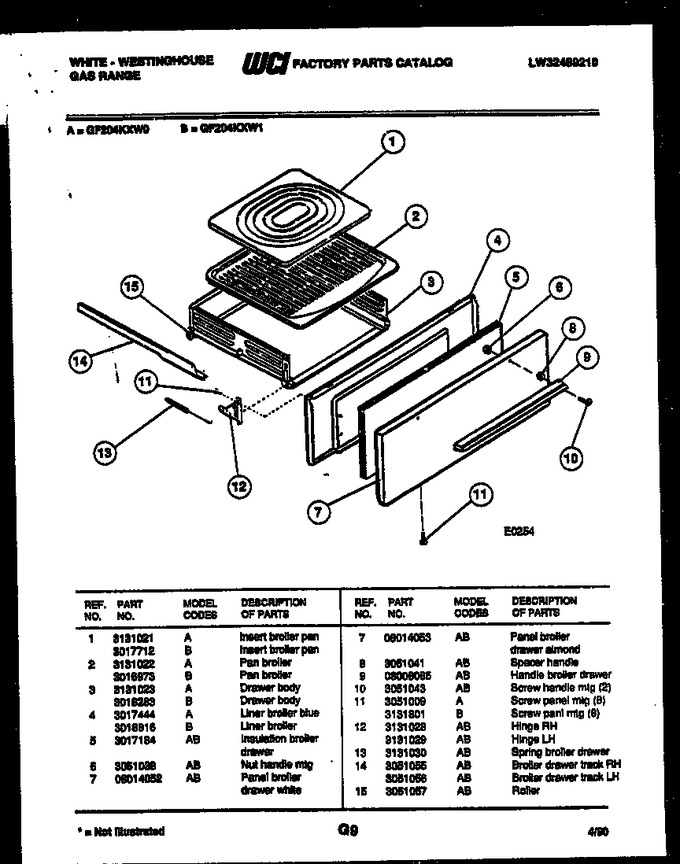

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3017712		Insert-broiler Pan		Appelez-nous	-
2	3016973		Pan-broiler		Appelez-nous	-
2	3016955		Insulation Wool		Appelez-nous	-
3	3018283		Drawer Body		Appelez-nous	-
4	3018816		Liner - Broiler		Appelez-nous	-
5	3017184		Insulation, Broiler Drawer		Appelez-nous	-
6	3051038		Nut-handle Mtg		Appelez-nous	-
7	08014052		Panel Broiler Drawer White		Appelez-nous	-
8	3051041		Spacer-handle		Appelez-nous	-
9	08008085		Handle Broiler Drawer		Appelez-nous	-
10	3051043		Screw Handle Mtg (2)		Appelez-nous	-
11	3131801		Screw Panl Mtg (8)		Appelez-nous	-
12	3131028		Hinge - Rh		Appelez-nous	-
13	3131030		Spring Broiler-drawer		Appelez-nous	-
14	3051055		Broiler-drawer Track Rh		Appelez-nous	-
15	3051057		Roller		Appelez-nous	-
12A	3131029		Hinge - Lh		Appelez-nous	-
14A	3051056		Broiler-drawer Track Lh		Appelez-nous	-
