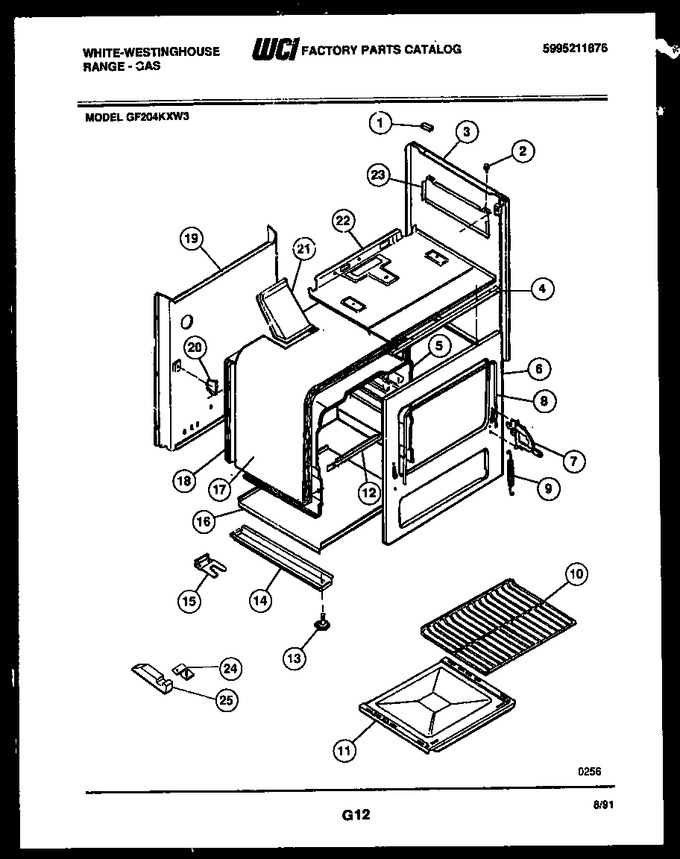

02 - Backguard And Cooktop Parts
03 - Broiler Drawer Parts
04 - Door Parts
05 - Burner, Manifold And Gas Control
06 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205587 | Grommet-main Top (2) |
|
- | |||||
| 2 | 3051063 | Grommet |
|
- | |||||
| 3 | 5303051061 | Panel Bodyside-lh/rh (white) |
|
- | |||||
| 4 | 3016950 | Support-control Pnl |
|
- | |||||
| 5 | 3018284 | Oven Liner-side Rh |
|
- | |||||
| 6 | 3203612 | Front Frame |
|
- | |||||
| 7 | 5303204672 | Hinge-door Lh |
|
- | |||||
| 8 | 5308013916 | Seal-oven Door |
|
- | |||||
| 9 | 5303051079 | Spring Hinge Lh/rh |
|
- | |||||
| 10 | 5303016128 | Rack Oven |
|
- | |||||
| 11 | 3018815 | Oven Bottom |
|
- | |||||
| 12 | 3131038 | Support-oven Bottom |
|
- | |||||
| 13 | 318175510 | Leveling Leg (Replaces: 5303210257) |
|
Immediately | $ 24.26 | ||||
| 14 | 5303210255 | Base Rail Rh |
|
- | |||||
| 15 | 3934059 | Bracket Installation |
|
- | |||||
| 16 | 3017448 | Main Bottom |
|
- | |||||
| 17 | 3202740 | Insulation-wrap |
|
- | |||||
| 18 | 3203741 | Insulation Back & Bottom |
|
- | |||||
| 19 | 5303271410 | Back-main |
|
- | |||||
| 20 | 3051096 | Support,oven Rear |
|
- | |||||
| 21 | 3017173 | Vent Box |
|
- | |||||
| 23 | 5303131053 | Shield-heat Rh |
|
- | |||||
| 24 | 5303210891 | Weight-cement |
|
- | |||||
| 25 | 5303210892 | Retainer Counter Weight |
|
- | |||||
| 14A | 5303210256 | Base Rail Lh |
|
- | |||||
| 21A | 3202742 | Burner Box |
|
- | |||||
| 23A | 5303131054 | Shield-heat Lh |
|
- | |||||
| 23B | 3009582 | Clip - Backsplash Corner (non-illustrated) |
|
- | |||||
| 5A | 3018285 | Oven Liner-side Lh |
|
- | |||||
| 5B | 3018818 | Oven Liner Top |
|
- | |||||
| 5C | 3018817 | Oven Liner Back |
|
- | |||||
| 7A | 5303204670 | Hinge-door Rh |
|
- |
