SELECT A DIAGRAM

02 - Backguard And Cooktop Parts


03 - Broiler Drawer Parts


04 - Door Parts


05 - Burner, Manifold And Gas Control


06 - Body Parts

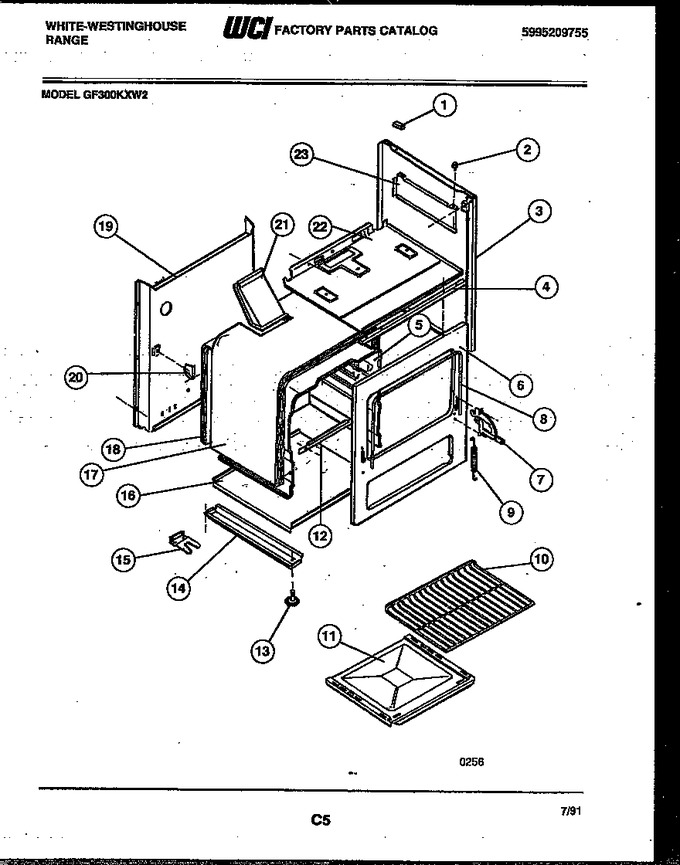

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3205587		Grommet-maintop		Appelez-nous	-
2	3051063		Grommet		Appelez-nous	-
4	3131811		Support-control Panel		Appelez-nous	-
5	3018284		Oven Liner-rh		Appelez-nous	-
6	3205578		Front - Frame		Appelez-nous	-
7	5303204672		Hinge-door Lh		Appelez-nous	-
8	5308008022		Seal,oven Door				$ 124.89
9	5303009435		Spring Hinge-lh/rh		Appelez-nous	-
10	5303015714		Rack-oven		Appelez-nous	-
11	3018282		Oven Bottom		Appelez-nous	-
12	3131038		Support - Oven Bttm		Appelez-nous	-
13	318175510		Leveling Leg   (Replaces: 5303210257)			Immediately	$ 24.26
14	5303210255		Rail-base Right		Appelez-nous	-
15	3934059		Anti-tip Brkt		Appelez-nous	-
16	3011645		Bottom - Main		Appelez-nous	-
17	3017171		Insulation - Wrap		Appelez-nous	-
18	3017172		Insulation - Back		Appelez-nous	-
19	3013340		Back-main		Appelez-nous	-
20	3051096		Support,oven Rear		Appelez-nous	-
21	3017173		Vent Box		Appelez-nous	-
22	3017174		Burner-box		Appelez-nous	-
23	5303131053		Shield-heat-b/s-rh		Appelez-nous	-
*48614	3131791		Clip-bodyside Corner				$ 19.01
14A	5303210256		Rail-base Left		Appelez-nous	-
23A	5303131054		Shield-heat-b/s-lh		Appelez-nous	-
3A	5308014019		Bodyside-almond Rh & Lh		Appelez-nous	-
5A	3018285		Oven Liner-lh		Appelez-nous	-
5B	3018347		Oven Liner Top		Appelez-nous	-
5C	3018995		Oven Liner Back		Appelez-nous	-
7A	5303204670		Hinge-door Rh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
