02 - Backguard And Cooktop Parts


03 - Broiler Drawer Parts


04 - Door Parts


05 - Burner, Manifold And Gas Control


06 - Body Parts

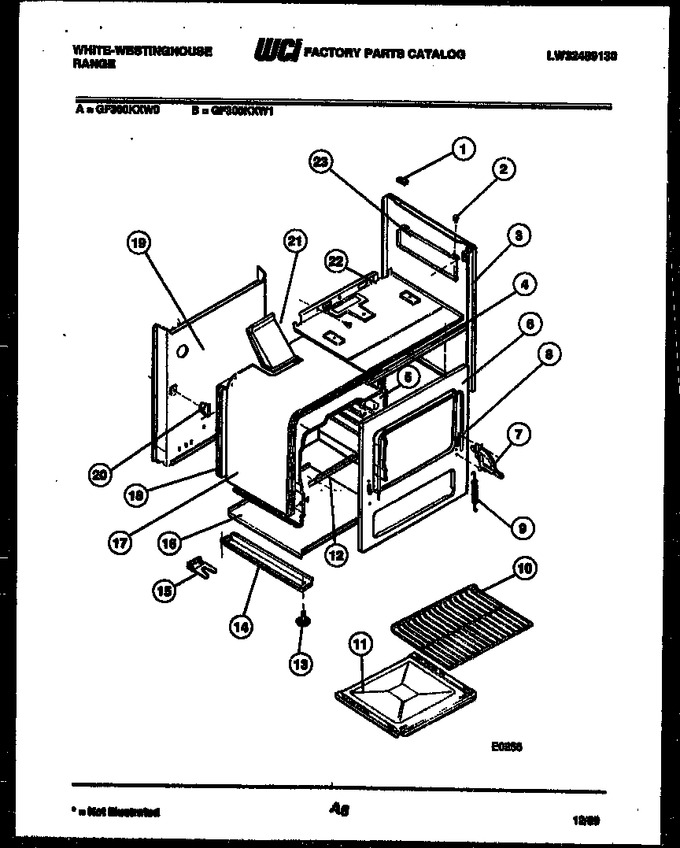

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3016129		Grommet Main Top		Appelez-nous	-
2	3051063		Grommet		Appelez-nous	-
3	3051061		Backspash White Lh & Rh		Appelez-nous	-
3	08014019		Body Side Panel (almond)		Appelez-nous	-
4	3131811		Support Control Pnl		Appelez-nous	-
5	3018285		Oven Liner Side Rh		Appelez-nous	-
5	3018284		Oven Liner-side Rh		Appelez-nous	-
6	3205578		Front - Frame		Appelez-nous	-
7	3204672		Hinge - Door Lh		Appelez-nous	-
8	08008022		Seal-oven Door		Appelez-nous	-
9	3009435		Spring Hinge Lh/rh		Appelez-nous	-
10	3015714		Rack-oven		Appelez-nous	-
11	3018282		Oven Bottom		Appelez-nous	-
12	3131038		Support-oven Btm		Appelez-nous	-
13	3051080		Leveling Leg		Appelez-nous	-
14	08068047		Rail Base Lh/rh		Appelez-nous	-
15	3934059		Anti-tip Kit		Appelez-nous	-
16	3011645		Main Bottom		Appelez-nous	-
17	3017171		Insulation - Wrap		Appelez-nous	-
18	3017172		Insulation - Back		Appelez-nous	-
19	3013340		Back-main		Appelez-nous	-
20	3051096		Support,oven Rear		Appelez-nous	-
21	3017173		Vent Box		Appelez-nous	-
22	3017174		Burner-box		Appelez-nous	-
23	3131053		Shield Heat Bib Rh		Appelez-nous	-
*78319	3009582		Clip Bachsplash Corner		Appelez-nous	-
23A	3131054		Shield Heat Bib Lh		Appelez-nous	-
5B	3018347		Oven Liner Top		Appelez-nous	-
5C	3018995		Oven Liner Back		Appelez-nous	-
7A	3204670		Hinge - Door Rh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
