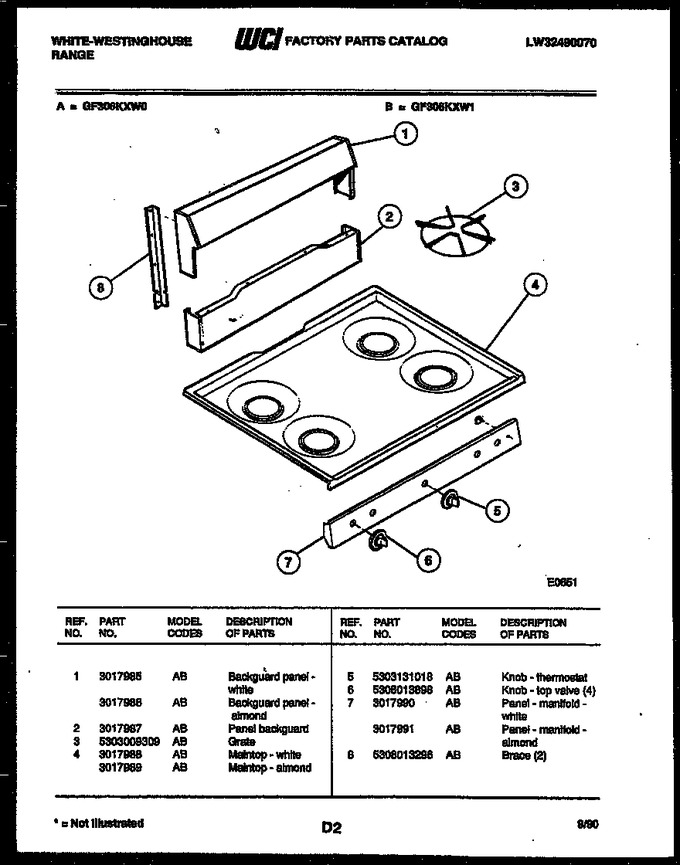

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017986 | Backguard Panel - Almond |
|
- | |||||
| 2 | 3017987 | Panel Backguard |
|
- | |||||
| 3 | 5303009309 | Grate |
|
$ 150.36 | |||||
| 4 | 3017989 | Maintop - Almond |
|
- | |||||
| 5 | 5303131018 | Knob-thermostat |
|
$ 40.95 | |||||
| 6 | 5308013898 | Knob-top Valve (4) |
|
$ 69.30 | |||||
| 7 | 3017991 | Panel - Manifold - Almond |
|
- | |||||
| 8 | 5308013296 | Brace (2) |
|
- |
