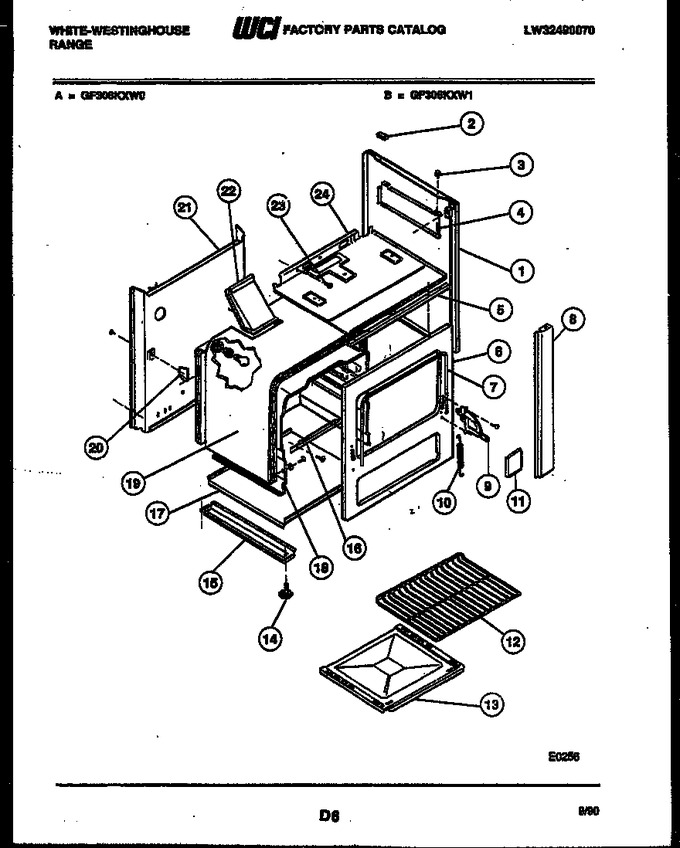

02 - Backguard And Cooktop Parts


03 - Door Parts


04 - Burner, Manifold And Gas Control


05 - Body Parts


06 - Broiler Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303051061		Panel - B/s - White		Appelez-nous	-
2	5303016129		Grommet - Rear		Appelez-nous	-
3	08068054		Grommet - Front		Appelez-nous	-
4	5303131053		Shield - Heat Rt		Appelez-nous	-
5	08014025		Support Control Panel		Appelez-nous	-
6	3017048		Frame - Front		Appelez-nous	-
7	5308008022		Seal,oven Door				$ 124.89
8	08013993		Panel - Filler (white)		Appelez-nous	-
9	5303204670		Hinge - Oven Door Rt		Appelez-nous	-
10	5303009435		Spring Oven Door (2)		Appelez-nous	-
11	08014023		Base - Rail Support		Appelez-nous	-
12	5303015714		Rack Oven (2)		Appelez-nous	-
13	3017168		Liner-bottom		Appelez-nous	-
14	5303051080		Leg - Leveling		Appelez-nous	-
15	5308068047		Base Rail		Appelez-nous	-
16	3131038		Support-oven Bottom		Appelez-nous	-
17	3011645		Bottom-oven		Appelez-nous	-
18	3131032		Liner - Side Rt		Appelez-nous	-
19	3017171		Insulation - Wrap		Appelez-nous	-
20	3051096		Support-rear (2)		Appelez-nous	-
21	08013945		Main Back		Appelez-nous	-
22	3017173		Flue Box		Appelez-nous	-
23	5301316432		Bushing-snap		Appelez-nous	-
24	3017993		Burner - Box Bottom		Appelez-nous	-
*10376	3934059		Anti-tip Kit		Appelez-nous	-
18A	3131033		Liner - Side Lt		Appelez-nous	-
18B	3017167		Liner (back)		Appelez-nous	-
18C	3017166		Liner (top)		Appelez-nous	-
19A	3017172		Insulation - Back		Appelez-nous	-
4A	5303131054		Shield - Heat Lt		Appelez-nous	-
9A	5303204672		Hinge - Oven Door Lt		Appelez-nous	-
